T27-8X8 Couplamatic T Series Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 1/2" Hose ID - 3/4x16 Thread Size

T27-8X8 by Couplamatic | T Series Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $12.60 Save $12.60
$113.40
$113.40 - $113.40
$113.40
$100.80
$100.80 - $100.80
$100.80

Couplamatic Systems Inc.
T Series - JIC/SAE Dual Seat - 90° Female Swivel Long Drop

Package Quantity: 10 EA

Specifications for Variant SKU: T27-8X8 Couplamatic | 10 |
Series: T Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb, 1/2in Female SAE 45 Flare
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

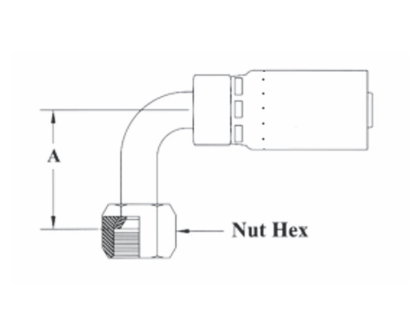

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Weatherhead E
T27-4X4 1/4" 1/4" 7/16x20 1.80" 9/16" 04E-644
T26-6X6* 3/8" 3/8" 9/16x18 2.18" 11/16" 06E-646
T27-8X8 1/2" 1/2" 3/4x16 2.50" 7/8" 08E-648
T27-12X12* 3/4" 3/4" 1-1/16x12 3.73" 1-1/4" 12E-652
T27-16X16* 1" 1" 1-5/16x12 4.50" 1-1/2" 16E-656

*JIC Seat & Thread Only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
