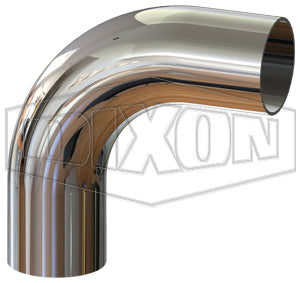

T2S88-050PM Dixon Valve 1/2" 316L Stainless Steel BioPharm 88° Weld x Weld Elbow (PM Finish SF4)

T2S88-050PM Dixon Valve 1/2" 316L Stainless Steel BioPharm 88° Weld x Weld Elbow (PM Finish SF4)

$43.25 - $43.25
$43.25
$45.37
$45.37 - $45.37
$45.37

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - BioPharm 88° Weld x Weld Elbow - T2S88

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: T2S88-050PM Dixon
Shape (Orientation): 88 Degree
Ends Configuration: 1/2in Weld End, 1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Electropolished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
L R OD WT
T2S88-050PL T2S88-050PM 1/2" 1.94" 1.06" 0.50" 0.065"
T2S88-075PL T2S88-075PM 3/4" 1.98" 1.02" 0.75" 0.065"
T2S88-100PL T2S88-100PM 1" 1.50" 1.50" 1.00" 0.065"
T2S88-150PL T2S88-150PM 1-1/2" 1.50" 2.25" 1.50" 0.065"
T2S88-200PL T2S88-200PM 2" 1.75" 3.00" 2.00" 0.065"
T2S88-250PL T2S88-250PM 2-1/2" 1.75" 3.75" 2.50" 0.065"
T2S88-300PL T2S88-300PM 3" 1.75" 4.50" 3.00" 0.065"
T2S88-400PL T2S88-400PM 4" 2.00" 6.00" 4.00" 0.083"
T2S88-600PL - 6" - - - -
