T30-5X6 Couplamatic T Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 5/16" Hose ID - 11/16x16 Thread Size

T30-5X6 by Couplamatic | T Series Coupling | 5/16" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Save $7.28

$65.52

$65.52 - $65.52

$65.52

$58.24

$58.24 - $58.24

$58.24

Couplamatic Systems Inc.
T Series - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: T30-5X6 Couplamatic \| 10 \|
Series:	T Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female O-Ring Face Seal, 5/16in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

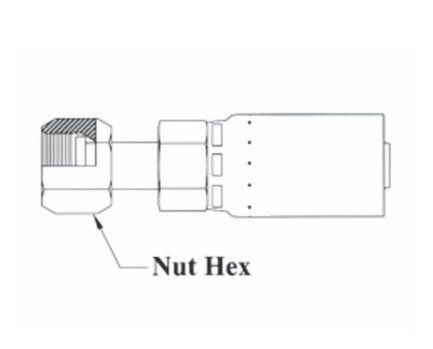

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Weatherhead E
T30-4X4	1/4"	9/16x18	1/4"	11/16"	04E-S64
T30-4X6	1/4"	11/16x16	3/8"	13/16"	04E-S66
T30-5X6	5/16"	11/16x16	3/8"	13/16"	05E-S66
T30-6X6	3/8"	11/16x16	3/8"	13/16"	06E-S66
T30-6X8	3/8"	13/16x16	1/2"	15/16"	06E-S68
T30-8X8	1/2"	13/16x16	1/2"	15/16"	08E-S68
T30-8X10	1/2"	1x14	5/8"	1-1/8"	08E-S70
T30-12X12	3/4"	1-3/16x12	3/4"	1-3/8"	12E-S72
T30-16X16	1"	1-7/16x12	1"	1-5/8"	16E-S76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
