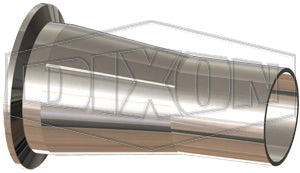

T31M-400150PL Dixon Valve 4" x 1-1/2" Tube OD 316L Stainless Steel BioPharm Clamp x Weld Concentric Reducer BPE2012 (PL Finish SF1)

T31M-400150PL Dixon Valve 4" x 1-1/2" Tube OD 316L Stainless Steel BioPharm Clamp x Weld Concentric Reducer BPE2012 (PL Finish SF1)

Save $136.78 Save $136.78
$341.95
$341.95 - $341.95
$341.95
$205.17
$205.17 - $205.17
$205.17

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Clamp x Weld Concentric Reducer - T31M

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: T31M-400150PL Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Sanitary Clamp End, 1-1/2in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size
T31M-075050PL T31M-075050PM 3/4" x 1/2"
T31M-100050PL T31M-100050PM 1" x 1/2"
T31M-100075PL T31M-100075PM 1" x 3/4"
T31M-150050PL T31M-150050PM 1-1/2" x 1/2"
T31M-150075PL T31M-150075PM 1-1/2" x 3/4"
T31M-150100PL T31M-150100PM 1-1/2" x 1"
T31M-200050PL T31M-200050PM 2" x 1/2"
T31M-200075PL T31M-200075PM 2" x 3/4"
T31M-200100PL T31M-200100PM 2" x 1"
T31M-200150PL T31M-200150PM 2" x 1-1/2"
T31M-250050PL T31M-250050PM 2-1/2" x 1/2"
T31M-250075PL T31M-250075PM 2-1/2" x 3/4"
T31M-250100PL T31M-250100PM 2-1/2" x 1"
T31M-250150PL T31M-250150PM 2-1/2" x 1-1/2"
T31M-250200PL T31M-250200PM 2-1/2" x 2"
T31M-300100PL T31M-300100PM 3" x 1"
T31M-300150PL T31M-300150PM 3" x 1-1/2"
T31M-300200PL T31M-300200PM 3" x 2"
T31M-300250PL T31M-300250PM 3" x 2-1/2"
T31M-400100PL T31M-400100PM 4" x 1"
T31M-400150PL T31M-400150PM 4" x 1-1/2"
T31M-400200PL T31M-400200PM 4" x 2"
T31M-400250PL T31M-400250PM 4" x 2-1/2"
T31M-400300PL T31M-400300PM 4" x 3"
T31M-600300PL - 6" x 3"
T31M-600400PL T31M-600400PM 6" x 4"
