T32-16X16 Couplamatic T Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 1" Hose ID - 1-7/16x12 Thread Size

T32-16X16 by Couplamatic | T Series Coupling | 1" Hose ID x 1-7/16x12 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Save $12.38 Save $12.38
$111.41
$111.41 - $111.41
$111.41
$99.03
$99.03 - $99.03
$99.03

Couplamatic Systems Inc.
T Series - O-Ring Face Seal (ORF) - 90° Female Swivel

Package Quantity: 5 EA

Specifications for Variant SKU: T32-16X16 Couplamatic | 5 |
Series: T Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

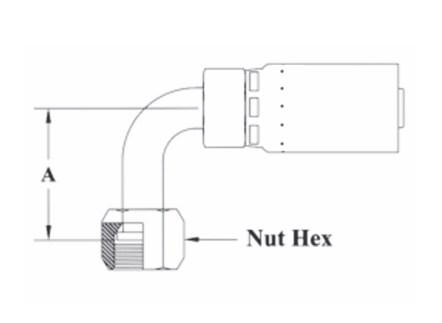

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Cross Reference Part Numbers
Weatherhead E
T32-4X4 1/4" 9/16x18 1/4" .78" 11/16" 04E-A24
T32-4X6 1/4" 11/16x18 3/8" .90" 13/16" 04E-A26
T32-5X6 5/16" 11/16x16 3/8" .90" 13/16" 05E-A26
T32-6X6 3/8" 11/16x16 3/8" .90" 13/16" 06E-A26
T32-6X8 3/8" 13/16x16 1/2" 1.15" 15/16" 06E-A28
T32-8X8 1/2" 13/16x16 1/2" 1.15" 15/16" 08E-A28
T32-12X12 3/4" 1-3/16x12 3/4" 1.88" 1-3/8" 12E-A32
T32-16X16 1" 1-7/16x12 1" 2.20" 1-5/8" 16E-A36

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
