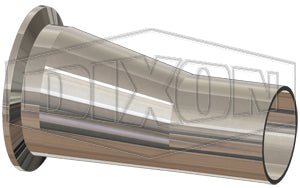

T32M-200075PL Dixon Valve 2" x 3/4" Tube OD 316L Stainless Steel BioPharm Clamp x Weld Eccentric Reducer BPE2012 (PL Finish SF1)

T32M-200075PL Dixon Valve 2" x 3/4" Tube OD 316L Stainless Steel BioPharm Clamp x Weld Eccentric Reducer BPE2012 (PL Finish SF1)

$82.72 - $82.72
$82.72
$86.80
$86.80 - $86.80
$86.80

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Clamp x Weld Eccentric Reducer - T32M

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: T32M-200075PL Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 3/4in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size
T32M-075050PL T32M-075050PM 3/4" x 1/2"
T32M-100050PL T32M-100050PM 1" x 1/2"
T32M-100075PL T32M-100075PM 1" x 3/4"
T32M-150050PL T32M-150050PM 1-1/2" x 1/2"
T32M-150075PL T32M-150075PM 1-1/2" x 3/4"
T32M-150100PL T32M-150100PM 1-1/2" x 1"
T32M-200050PL T32M-200050PM 2" x 1/2"
T32M-200075PL T32M-200075PM 2" x 3/4"
T32M-200100PL T32M-200100PM 2" x 1"
T32M-200150PL T32M-200150PM 2" x 1-1/2"
T32M-250050PL - 2-1/2" x 1/2"
T32M-250075PL - 2-1/2" x 3/4"
T32M-250100PL T32M-250100PM 2-1/2" x 1"
T32M-250150PL T32M-250150PM 2-1/2" x 1-1/2"
T32M-250200PL T32M-250200PM 2-1/2" x 2"
T32M-300100PL T32M-300100PM 3" x 1"
T32M-300150PL T32M-300150PM 3" x 1-1/2"
T32M-300200PL T32M-300200PM 3" x 2"
T32M-300250PL T32M-300250PM 3" x 2-1/2"
T32M-400100PL - 4" x 1"
T32M-400150PL - 4" x 1-1/2"
T32M-400200PL T32M-400200PM 4" x 2"
T32M-400250PL T32M-400250PM 4" x 2-1/2"
T32M-400300PL T32M-400300PM 4" x 3"
T32M-600300PL - 6" x 3"
T32M-600400PL - 6" x 4"
