T33-8X8 Couplamatic T Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop - 1/2" Hose ID - 13/16x16 Thread Size

T33-8X8 by Couplamatic | T Series Coupling | 1/2" Hose ID x 13/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Pack of 10

Save $72.43

$181.07

$181.07 - $181.07

$181.07

$108.64

$108.64 - $108.64

$108.64

Couplamatic Systems Inc.
T Series - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop

Package Quantity: 10 EA

Specifications for Variant SKU: T33-8X8 Couplamatic \| 10 \|
Series:	T Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

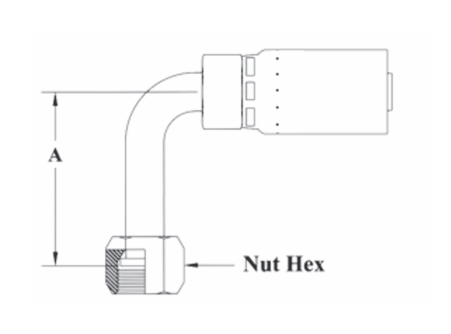

Part Number	Hose ID	Thread Size	Tube OD	A-DropInches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-DropInches	Nut Hex	Weatherhead E
T33-4X4	1/4"	9/16x18	1/4"	1.80"	11/16"	04E-A64
T33-6X6	3/8"	11/16x16	3/8"	2.13"	13/16"	06E-A66
T33-8X8	1/2"	13/16x16	1/2"	2.51"	15/16"	08E-A68

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
