T340AA075X200 Alfagomma by Kuriyama | T340AA Series | Steam Hose | 3/4" ID | 1.22" OD | 270 PSI | Black | 200ft Length

T340AA075X200 Alfagomma by Kuriyama | T340AA Series | Steam Hose | 3/4" ID | 1.22" OD | 270 PSI | Black | 200ft Length

Save $367.37 Save $367.37
$1,286.20
$1,286.20 - $1,286.20
$1,286.20
$918.83
$918.83 - $918.83
$918.83

Kuriyama of America Inc.
Alfagomma | T340AH / T340AA Series | 270 PSI EPDM Braided Steam Hose

For the transfer of saturated steam up to 270 PSI and 410°F (+210°C).

Package Quantity: 200 Foot

Specifications for Variant SKU: T340AA075X200 Kuriyama | 200 |
Brand: Alfagomma
Series: T340AA Series
Hose Color(s): Black
Internal Diameter: 0.75in - 3/4in
Outer Diameter: 1.22in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: The transfer of saturated steam up to 270 PSI and 410°F (+210°C).
Use with superheated steam will shorten hose life.
Proper draining of steam hose after each use will increase service life.
Not recommended for washdown applications where detergent or oils are present.
Not for steam cleaner use.
Other Ratings: - Tube: Black extruded EPDM - heat-resistant.

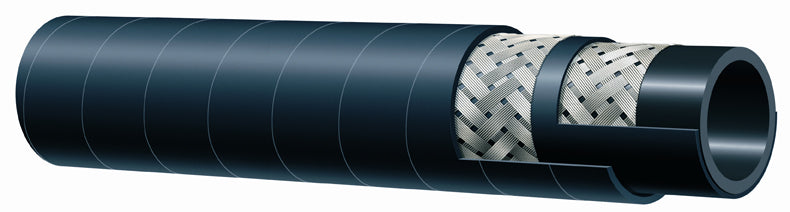

Reinforcement: High tensile steel wire braids (1/2" ID - 1 wire braid, 3/4" and higher ID's - 2 wire braids). Cover: Red or black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting.
Service Temperature Range: Saturated Steam. Constant Operation: -40°F (-40°C) to +410°F (+210°C) Intermittent to +450°F (+232°C) Coupling Suggestions: Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps.
Branding: ALFAGOMMA - ITALY T340 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed)
Red Cover
Part Number
50ft		 Part Number
100ft		 Part Number
200ft		 ID OD Max Rec.
Working
Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T340AH050X50 T340AH050X100 - 1/2" 13mm 0.91" 23mm 270 PSI 5" 0.28 lbs/ft
T340AH075X50 T340AH075X100 T340AH075X200 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 0.52 lbs/ft
T340AH100X50 T340AH100X100 - 1" 25mm 1.50" 38mm 270 PSI 10" 0.60 lbs/ft
Black Cover
Part Number
50ft		 Part Number
100ft		 Part Number
200ft		 ID OD Max Rec.
Working
Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T340AA050X50 T340AA050X100 - 1/2" 13mm 0.91" 23mm 270 PSI 5" 0.28 lbs/ft
T340AA075X50 T340AA075X100 T340AA075X200 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 0.52 lbs/ft
T340AA100X50 T340AA100X100 - 1" 25mm 1.50" 38mm 270 PSI 10" 0.60 lbs/ft
T340AA200X50 T340AA200X100 - 2" 51mm 2.64" 67mm 270 PSI 20" 1.38 lbs/ft
T340AA300X50 T340AA300X100 - 3" 76mm 3.70" 94mm 270 PSI 30" 2.50 lbs/ft
