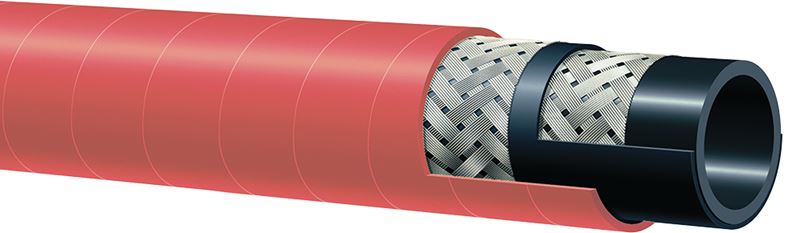

T343AH075X100 Alfagomma by Kuriyama | T343AH Series | Refinery Steam Hose | 3/4" ID | 1.22" OD | 270 PSI | Red | 100ft Length

T343AH075X100 Alfagomma by Kuriyama | T343AH Series | Refinery Steam Hose | 3/4" ID | 1.22" OD | 270 PSI | Red | 100ft Length

Save $150.55 Save $150.55
$735.94
$735.94 - $735.94
$735.94
$585.39
$585.39 - $585.39
$585.39

Kuriyama of America Inc.
Alfagomma | T343AH Series | 270 PSI Braided Refinery Steam Hose

For saturated and superheated steam in applications where an oil resistant cover is needed.

Package Quantity: 100 Foot

Specifications for Variant SKU: T343AH075X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T343AH Series
Hose Color(s): Red
Internal Diameter: 0.75in - 3/4in
Outer Diameter: 1.22in
Tubing Construction: EPDM
Cover Construction: Special Proprietary
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Saturated and superheated steam in applications where an oil resistant cover is needed.
Warning: Handling steam is very hazardous. If it is not properly controlled it can cause property damage, injury or even death. Selection for the proper application, usage, and maintenance will not only increase hose life but will insure safe operation for the user.
Not for steam cleaner use.
Use with superheated steam will shorten hose life.
Proper draining of steam hose after each use will increase service life.
Other Ratings: - Tube: Black extruded EPDM - heat-resistant.
Reinforcement: High tensile steel wire braids. Cover: Red special compound - heat, oilresistant, ozone and hydrocarbon resistant. Pin-pricked cover to allow venting.
Service Temperature Range: Saturated and Superheated Steam where an oil resistant cover is required. Constant Operation: -40°F (-40 °C) to +410°F (+210°C) Intermittent to +450°F (+232°C) Coupling Suggestions: Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps.
Branding: Embossed brand ALFAGOMMA - ITALY T343 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T343AH075X50 T343AH075X100 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 0.54 lbs/ft
T343AH100X50 T343AH100X100 1" 25mm 1.50" 38mm 270 PSI 10" 0.66 lbs/ft
