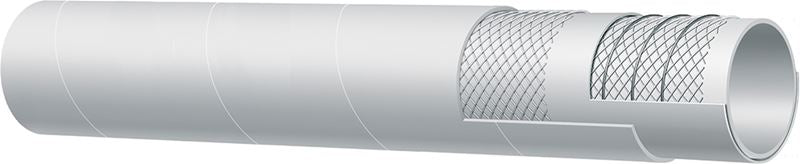

T400LL150X100 Alfagomma by Kuriyama | T400LL Evolution Series | FDA Multi Food Suction & Discharge Hose | 1-1/2" ID | 1.93" OD | 150 PSI | White | 100ft Length

T400LL150X100 Alfagomma by Kuriyama | T400LL Evolution Series | FDA Multi Food Suction & Discharge Hose | 1-1/2" ID | 1.93" OD | 150 PSI | White | 100ft Length

Save $379.80 Save $379.80
$1,365.33
$1,365.33 - $1,365.33
$1,365.33
$985.53
$985.53 - $985.53
$985.53

Kuriyama of America Inc.
Alfagomma | T400LL Evolution Series | Multi Food Suction & Discharge Hose

For liquid food suction and discharge, including alcoholic beverages, milk transfer, animal fats and vegetable oils.

(Replaces T405LL Series Hose)

Package Quantity: 100 Foot

Specifications for Variant SKU: T400LL150X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T400LL Series
Hose Color(s): White
Internal Diameter: 1.50in - 1-1/2in
Outer Diameter: 1.93in
Tubing Construction: Nitrile
Cover Construction: Nitrile/PVC Blend
Applicable Specs & Approvals: Applicable FDA Standards, Applicable 3-A Sanitary Standards
Special Properties: Food Grade

SPECIFICATIONS

Application: - Liquid food suction and discharge.
- Alcoholic beverages - wine, beer & spirits up to 75% alcohol content and 150 proof.
- Milk tanker collection & unloading-ideal for reel applications
- Hot food-constant operations: liquid food up to 230° F (110° C), fat foods up to 248° F (120° C)
- Fat foods-perfect for animal fats and any vegetable oils
- Hose may be sterilized with 266° F (130° C) steam for 30 minutes or with 5% soda solution.
Other Ratings: Compliant to FDA and 3A standards. Tube: White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free.
Reinforcement: High tensile textile cords with embedded steel helix wire. Cover: White NBR/PVC abrasion, weather & ozone resistant.
Service Temperature Range: Liquid foods: -22° F (-30° C) to +230° F (+110° C)
Fat foods: -22° F (-30° C) to +248° F (+120° C		 Coupling Suggestions: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: AG -ITALY- 400 EVOLUTION 10 bar (150 psi) MULTI FOOD S&D 110 °C (230°F) FDA 3-A (food symbol)
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T400LL100X50 T400LL100X100 1" 25mm 1.42" 36mm 150 PSI 30 in Hg 2" 0.56 lbs/ft
- T400LL125X100 1-1/4" 32mm 1.69" 43mm 150 PSI 30 in Hg 2-1/2" 0.68 lbs/ft
T400LL150X50 T400LL150X100 1-1/2" 38mm 1.93" 49mm 150 PSI 30 in Hg 3" 0.79 lbs/ft
T400LL200X50 T400LL200X100 2" 51mm 2.48" 63mm 150 PSI 30 in Hg 4" 1.07 lbs/ft
- T400LL250X100 2-1/2" 63mm 2.99" 76mm 150 PSI 27 in Hg 5" 1.61 lbs/ft
T400LL300X50 T400LL300X100 3" 76mm 3.50" 89mm 150 PSI 27 in Hg 6" 1.94 lbs/ft
T400LL400X50 T400LL400X100 4" 102mm 4.57" 116mm 150 PSI 27 in Hg 8" 2.63 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
