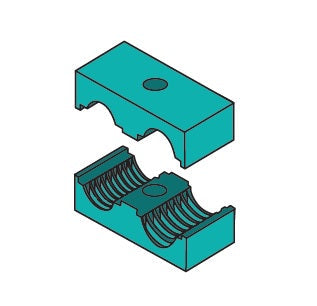

T4018C ZSi-Foster | Beta Clamp | Twin Series | For 1-1/8" x 1-1/8" Tube | Cushion Body ONLY | Polypropylene

T4018C by ZSi-Foster | Beta Clamp | Twin Series | For 1-1/8" x 1-1/8" Tube | Cushion Body ONLY | Polypropylene

Save $1.34 Save $1.34
$3.35
$3.35 - $3.35
$3.35
$2.01
$2.01 - $2.01
$2.01

ZSI-Foster
Beta Hydraulic Clamps - Twin Series - Cushion Body ONLY - Polypropylene

- Cushions are Polypropylene (Green Color).

- Ideal for general-duty applications subject to moderate levels of shock and vibration.
Specifications for Variant SKU: T4018C ZSI-Foster
Series: Twin Series
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Cushion: Polypropylene (Green)
Installation:
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
- T1007C 1/8" x 1/8" 1/4-20 x 1-3/8
T1004C T2009C 1/4" x 1/4" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T1006C T2011C 3/8" x 3/8" Tube: 1/4-20 x 1-3/8
Pipe: 5/16-18 x 1-3/8
T2008C T3014C 1/2" x 1/2" Tube: 5/16-18 x 1-3/8
Pipe: 5/16-18 x 1-3/4
T2010C - 5/8" x 5/8" 5/16-18 x 1-3/8
T3012C T4017C 3/4" x 3/4" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2
T3015C - 7/8" x 7/8" 5/16-18 x 1-3/4
T3016C T5021C 1" x 1" Tube: 5/16-18 x 1-3/4
Pipe: 5/16-18 x 2-3/8
T4018C - 1-1/8" x 1-1/8" 5/16-18 x 2
T5020C T5027C 1-1/4" x 1-1/4" 5/16-18 x 2-3/8
T5024C - 1-1/2" x 1-1/2" 5/16-18 x 2-3/8
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
