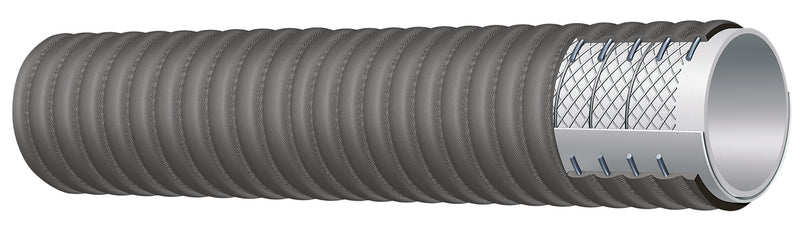

T426LB400X100 Alfagomma by Kuriyama | T426LB Series | FDA Corrugated Food Suction & Discharge Hose | 4" ID | 4.65" OD | 150 PSI | Grey | 100ft Length

Save $835.48

$3,379.96

$3,379.96 - $3,379.96

$3,379.96

$2,544.48

$2,544.48 - $2,544.48

$2,544.48

Kuriyama of America Inc.
Alfagomma | T426LB Series | 150 PSI FDA Grey Corrugated Food Suction & Discharge Hose

For liquid, fatty, oily food, and alcoholic beverages, max 150 proof and 75% alcohol content.

Package Quantity: 100 Foot

Specifications for Variant SKU: T426LB400X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T426LB Series
Hose Color(s):	Gray
Internal Diameter:	4in
Outer Diameter:	4.65in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile/PVC Blend
Applicable Specs & Approvals:	Applicable FDA Requirements, Applicable 3-A Sanitary Standards
Special Properties:	Food Grade

Application:	- Liquid, fatty, oily food and alcoholic beverage, max 150 proof and 75% alcohol content, suction and discharge. - Hose may be sterilized with 5% soda solution. - Not recommended for dry abrasive materials.
Other Ratings:	Meets FDA and 3A (18-03) requirements.	Tube:	White NBR. Meets FDA and 3A (18-03) requirements.
Reinforcement:	High tensile textile cords with flexible steel helix wire.	Cover:	Gray NBR/PVC - abrasion, ozone and oil resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding:	ALFAGOMMA - ITALY T426 10 BAR (150 PSI) - GENERAL PURPOSE FOOD QUALITY - S & D (black letters)

Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
T426LB300X100	3"	76mm	3.62"	92mm	150 PSI	30 in Hg	6"	1.84 lbs/ft
T426LB400X100	4"	102mm	4.65"	118mm	150 PSI	30 in Hg	8"	2.69 lbs/ft
