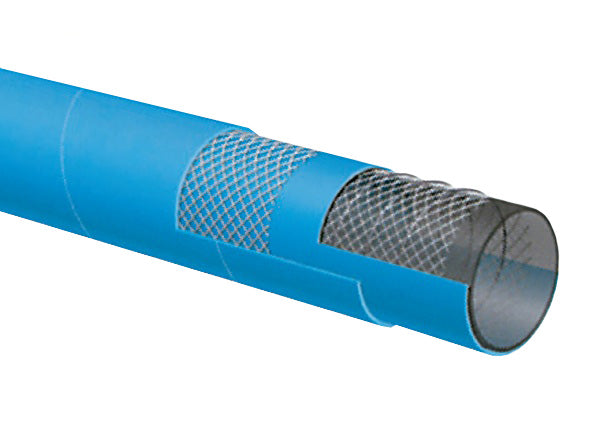

T509OE100X100 Alfagomma by Kuriyama | T505OG Series | UHMWPE Acid / Chemical Suction & Discharge Hose | 1" ID | 1.46" OD | 240 PSI | Blue | 100ft Length

T509OE100X100 Alfagomma by Kuriyama | T505OG Series | UHMWPE Acid / Chemical Suction & Discharge Hose | 1" ID | 1.46" OD | 240 PSI | Blue | 100ft Length

Save $709.24 Save $709.24
$1,486.72
$1,486.72 - $1,486.72
$1,486.72
$777.48
$777.48 - $777.48
$777.48

Kuriyama of America Inc.
Alfagomma | T509OE Series | UHMWPE Acid / Chemical Suction & Discharge Hose

Meets FDA Requirements Suitable for use with DEF.

Will handle 98% of existing chemicals.

Package Quantity: 100 Foot

Specifications for Variant SKU: T509OE100X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T505OG Series
Hose Color(s): Blue
Internal Diameter: 1in
Outer Diameter: 1.46in
Tubing Construction: Ultra High Molecular Weight Polyethylene
Cover Construction: EPDM
Applicable Specs & Approvals: Applicable FDA Requirements

SPECIFICATIONS

Application: Suction and transfer service for a variety of chemicals and acids. Will handle 98% of existing chemicals.
Other Ratings: Meets FDA Requirements. Tube: Transparent UHMWPE (Ultra High Molecular Weight Polyethylene).
Reinforcement: Synthetic textile cords with flexible steel helix wire. Cover: Blue EPDM - abrasion and ozone resistant.
Service Temperature Range: Normal recommended operating temperature is -22°F (-30°C) to +200°F (+93°C) Coupling Suggestions: Quick-Acting and combination nipples, preferably stainless steel, attached with bands.
Branding: ALFAGOMMA - ITALY T509 16 BAR (240 PSI) - UHMWPE CHEMICAL - S & D (in orange letters)
Important: IT IS ADVISABLE TO TEST THE TUBE MATERIAL UNDER ACTUAL SERVICE CONDITIONS PRIOR TO USE. NOTE: FOR MAXIMUM SERVICE LIFE, WE RECOMMEND THAT T509 HOSE BE FLUSHED OUT AFTER EVERY USE.
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T509OE075X100 3/4" 19mm 1.22" 31mm 240 PSI 27 in Hg 7-1/2" 0.41 lbs/ft
T509OE100X100 1" 25mm 1.46" 37mm 240 PSI 27 in Hg 9" 0.50 lbs/ft
T509OE125X100 1-1/4" 32mm 1.73" 44mm 240 PSI 27 in Hg 10-1/4" 0.60 lbs/ft
T509OE150X100 1-1/2" 38mm 1.97" 50mm 240 PSI 27 in Hg 13-1/4" 0.68 lbs/ft
T509OE200X100 2" 51mm 2.48" 63mm 240 PSI 27 in Hg 16-1/4" 0.91 lbs/ft
T509OE250X100 2-1/2" 63mm 3.03" 77mm 240 PSI 27 in Hg 17-1/2" 1.40 lbs/ft
T509OE300X100 3" 76mm 3.62" 92mm 240 PSI 24 in Hg 20-3/4" 1.91 lbs/ft
T509OE400X100 4" 102mm 4.65" 118mm 240 PSI 24 in Hg 26-1/2" 2.61 lbs/ft
T509OE600X100 6" 152mm 6.77" 172mm 240 PSI 24 in Hg 40" 5.28 lbs/ft
