T600AA100X25 Alfagomma by Kuriyama | T600AA Series | Hard Wall Marine Exhaust Hose | USCG/SAE J1527 A2/B2 | 1" ID | 1.38" OD | 30 PSI | Black | 25ft Length

T600AA100X25 Alfagomma by Kuriyama | T600AA Series | Hard Wall Marine Exhaust Hose | USCG/SAE J1527 A2/B2 | 1" ID | 1.38" OD | 30 PSI | Black | 25ft Length

Save $62.00 Save $62.00
$238.98
$238.98 - $238.98
$238.98
$176.98
$176.98 - $176.98
$176.98

Kuriyama of America Inc.
Alfagomma | T600AA Series | Hard Wall Marine Exhaust Hose

Fuel, oil and hydraulic fluids suction and discharge. Suitable for exhaust gas from water cooled stationary or marine diesel engines.

USCG/SAE J1527 A2/B2

Package Quantity: 25 Foot

Specifications for Variant SKU: T600AA100X25 Kuriyama | 25 |
Brand: Alfagomma
Series: T600AA Series
Hose Color(s): Black
Internal Diameter: 1in
Outer Diameter: 1.38in
Tubing Construction: Nitrile
Cover Construction: Nitrile/PVC Blend
Applicable Specs & Approvals: USCG/SAE J1527 A2/B2

SPECIFICATIONS

Application: Fuel, oil and hydraulic fluids suction and discharge. Suitable for exhaust gas from water cooled stationary or marine diesel engines. Offers maximum flexibility.
Other Ratings: USCG/SAE J1527 A2/B2 Tube: Black NBR - exhaust gas, fuel and fire resistant.

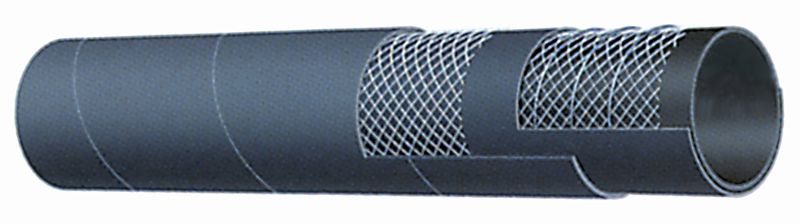

Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Black NBR/PVC blend - abrasion, ozone, hydrocarbon and fire resistant.
Service Temperature Range: -4°F (-20°C) to +212°F (+100°C) Coupling Suggestions: -
Branding: ALFAGOMMA - ITALY T600 MARINE EXHAUST/FUEL S & D - - USCG/SAE J1527 TYPE A2 (in red letters)
Part Number
25ft		 Part Number
50ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T600AA062X25 T600AA062X50 5/8" 16mm 1.02" 26mm 30 PSI 30 in Hg 2" 0.36 lbs/ft
T600AA075X25 T600AA075X50 3/4" 19mm 1.14" 29mm 30 PSI 30 in Hg 2-1/4" 0.44 lbs/ft
T600AA087X25 T600AA087X50 7/8" 22mm 1.26" 32mm 30 PSI 30 in Hg 2-3/4" 0.50 lbs/ft
T600AA100X25 T600AA100X50 1" 25mm 1.38" 35mm 30 PSI 30 in Hg 3" 0.56 lbs/ft
T600AA112X25 T600AA112X50 1-1/8" 28mm 1.50" 38mm 30 PSI 30 in Hg 3-1/4" 0.60 lbs/ft
T600AA125X25 T600AA125X50 1-1/4" 32mm 1.65" 42mm 30 PSI 30 in Hg 3-3/4" 0.65 lbs/ft
T600AA137X25 T600AA137X50 1-3/8" 35mm 1.77" 45mm 30 PSI 30 in Hg 4-1/4" 0.70 lbs/ft
T600AA150X25 T600AA150X50 1-1/2" 38mm 1.89" 48mm 30 PSI 30 in Hg 4-1/2" 0.76 lbs/ft
T600AA162X25 T600AA162X50 1-5/8" 42mm 2.17" 52mm 30 PSI 30 in Hg 5" 0.81 lbs/ft
T600AA175X25 T600AA175X50 1-3/4" 45mm 2.16" 55mm 30 PSI 30 in Hg 5-1/4" 0.87 lbs/ft
T600AA189X25 T600AA189X50 1-7/8" 48mm 2.28" 58mm 30 PSI 30 in Hg 5-3/4" 0.91 lbs/ft
T600AA200X25 T600AA200X50 2" 51mm 2.40" 61mm 30 PSI 30 in Hg 6" 0.99 lbs/ft
T600AA225X25 T600AA225X50 2-1/4" 57mm 2.64" 67mm 30 PSI 30 in Hg 6-3/4" 1.09 lbs/ft
T600AA238X25 T600AA238X50 2-3/8" 60mm 2.76" 70mm 30 PSI 27 in Hg 7" 1.25 lbs/ft
T600AA250X25 T600AA250X50 2-1/2" 63mm 2.87" 73mm 30 PSI 27 in Hg 7-1/2" 1.31 lbs/ft
T600AA275X25 T600AA275X50 2-3/4" 70mm 3.11" 80mm 30 PSI 27 in Hg 8-1/4" 1.41 lbs/ft
T600AA300X25 T600AA300X50 3" 76mm 3.39" 86mm 30 PSI 27 in Hg 9" 1.53 lbs/ft
T600AA350X25 T600AA350X50 3-1/2" 90mm 3.94" 100mm 30 PSI 27 in Hg 10-1/2" 1.91 lbs/ft
T600AA400X25 T600AA400X50 4" 102mm 4.41" 112mm 30 PSI 27 in Hg 12" 2.12 lbs/ft
T600AA450X25 T600AA450X50 4-1/2" 115mm 5.00" 127mm 30 PSI 27 in Hg 13-1/2" 2.72 lbs/ft
T600AA500X25 T600AA500X50 5" 127mm 5.55" 141mm 30 PSI 24 in Hg 15" 3.04 lbs/ft
