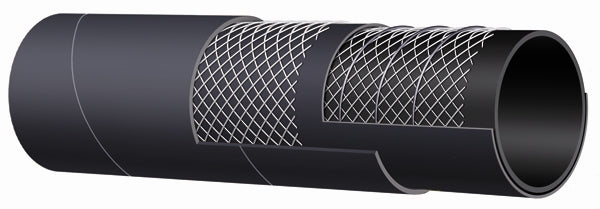

T601AA400X100 Alfagomma by Kuriyama | T601AA Series | Oil Rigger/Oil Field Frack Tank Hose | 4" ID | 4.57" OD | 150 PSI | Black | 100ft Length

T601AA400X100 Alfagomma by Kuriyama | T601AA Series | Oil Rigger/Oil Field Frack Tank Hose | 4" ID | 4.57" OD | 150 PSI | Black | 100ft Length

Save $676.68 Save $676.68
$2,230.49
$2,230.49 - $2,230.49
$2,230.49
$1,553.81
$1,553.81 - $1,553.81
$1,553.81

Kuriyama of America Inc.
Alfagomma | T601AA Series | Oil Rigger/Oil Field-Frack Tank Hose

For oil field vacuum tank service, for handling crude oil, frack solutions and slurries.

For applications up to 35% aromatics.

Package Quantity: 100 Foot

Specifications for Variant SKU: T601AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T601AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: Nitrile/PVC Blend
Cover Construction: SBR

SPECIFICATIONS

Application: Oil field vacuum tank service, for handling crude oil, frack solutions and slurries.
Note: For applications up to 35% aromatics.
Not for use with refined petroleum products.
Other Ratings: - Tube: Black Nitrile - PVC blend, limited oil resistance, for oil field use.
Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Black SBR - abrasion, ozone, limited oil resistance.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting couplings or combination nipples attached with bands.
Branding: ALFAGOMMA - ITALY T601 10 BAR (150 PSI) OIL FIELD-FRACK TANK HOSE (in blue letters)
Part Number
20ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
- T601AA200X100 2" 51mm 2.40" 61mm 150 PSI 30 in Hg 10" 0.93 lbs/ft
- T601AA300X100 3" 76mm 3.46" 88mm 150 PSI 27 in Hg 15" 1.73 lbs/ft
- T601AA400X100 4" 102mm 4.57" 116mm 150 PSI 27 in Hg 20" 2.40 lbs/ft
T601AA600X20 T601AA600X100 6" 152mm 6.61" 168mm 150 PSI 24 in Hg 30" 4.59 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
