T604AA200X100 Alfagomma by Kuriyama | T604AA Series | Flexor Oil Return Petroleum Hose | SAE 100R4 | 2" ID | 2.40" OD | 100 PSI | Black | 100ft Length

Save $532.74

$1,293.11

$1,293.11 - $1,293.11

$1,293.11

$760.37

$760.37 - $760.37

$760.37

Kuriyama of America Inc.

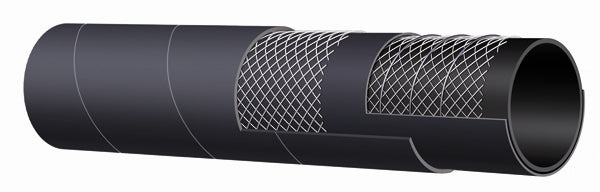

Alfagomma | T604AA Series | Flexor Oil Return Petroleum Hose

For low pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4, service with petroleum based hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, oil, lubricants, crude oil, fuel oils and water.

Package Quantity: 100 Foot

Specifications for Variant SKU: T604AA200X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T604AA Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.40in
Tubing Construction:	Nitrile
Cover Construction:	Chloroprene
Special Properties:	Conductive Tube

SPECIFICATIONS

Application:	Low pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4, service with petroleum based hydraulic fluids, water-glycol and water-fire resistant hydraulic fluids, oil, lubricants, crude oil, fuel oils and water.
Other Ratings:	SAE J517 100 R4	Tube:	Black conductive NBR.
Reinforcement:	High tensile textile cords with flexible steel helix wire.	Cover:	Black CR - oil, fuel, weather, ozone and abrasion-resistant.
Service Temperature Range:	-40° F (-40° C) to +212° F (+100° C) constant operation Maximum operating temperature: +257° F (+125° C) Air maximum temperature: 175° F (80° C). Note: Operating temperatures in excess of 212° F (+100° C) may materially reduce the life of the hose.	Coupling Suggestions:	Crimp-on permanent type or combination nipples with bands. Note: Hose cover does not need to be removed before attaching couplings.
Branding:	ALFAGOMMA - ITALY - T604 (PSI) - SAE 100 R4 - (SIZE) - Date (in white letters)

Part Number 100ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
T604AA075X100	3/4"	19mm	1.14"	29mm	300 PSI	30 in Hg	2-1/4"	0.41 lbs/ft
T604AA100X100	1"	25mm	1.38"	35mm	250 PSI	30 in Hg	3"	0.52 lbs/ft
T604AA125X100	1-1/4"	32mm	1.65"	42mm	200 PSI	30 in Hg	3-3/4"	0.61 lbs/ft
T604AA150X100	1-1/2"	38mm	1.89"	48mm	150 PSI	30 in Hg	4-1/2"	0.70 lbs/ft
T604AA200X100	2"	51mm	2.40"	61mm	100 PSI	30 in Hg	6"	0.90 lbs/ft
