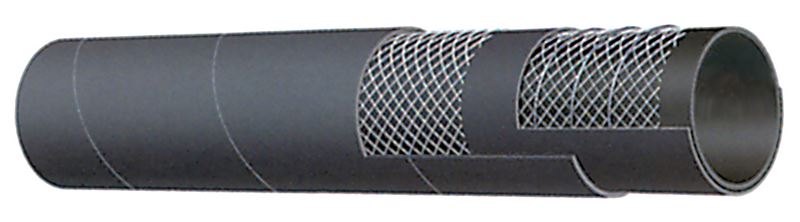

T605AA600X20 Alfagomma by Kuriyama | T605AA Evolution Series | Petroleum Suction & Discharge Hose | 6" ID | 6.69" OD | 150 PSI | Black | 20ft Length

T605AA600X20 Alfagomma by Kuriyama | T605AA Evolution Series | Petroleum Suction & Discharge Hose | 6" ID | 6.69" OD | 150 PSI | Black | 20ft Length

Save $528.70 Save $528.70
$1,267.99
$1,267.99 - $1,267.99
$1,267.99
$739.29
$739.29 - $739.29
$739.29

Kuriyama of America Inc.
Alfagomma | T605AA Evolution Series | Petroleum Suction & Discharge Hose

For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.

Also suitable for marine wet exhaust and bilge pump connections.

Package Quantity: 20 Foot

Specifications for Variant SKU: T605AA600X20 Kuriyama | 20 |
Brand: Alfagomma
Series: T605AA Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.69in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Also suitable for marine wet exhaust and bilge pump connections.
Other Ratings: - Tube: Black conductive NBR.
Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Black CR - abrasion, ozone and hydrocarbon resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Branding: ALFAGOMMA - ITALY 605 EVOLUTION- 10 BAR (150 PSI) PETROLEUM - S & D Ù - SAE 100R4 (in red letters)
T605 IS NOT RECOMMENDED FOR USE ON A REEL.
Part Number
20ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
- T605AA075X100 3/4" 19mm 1.18" 30mm 150 PSI 30 in Hg 1.5" 0.40 lbs/ft
- T605AA100X100 1" 25mm 1.42" 36mm 150 PSI 30 in Hg 2" 0.50 lbs/ft
- T605AA125X100 1-1/4" 32mm 1.69" 43mm 150 PSI 30 in Hg 2.5" 0.60 lbs/ft
- T605AA150X100 1-1/2" 38mm 1.93" 49mm 150 PSI 30 in Hg 3" 0.70 lbs/ft
- T605AA200X100 2" 51mm 2.44" 62mm 150 PSI 30 in Hg 4" 0.91 lbs/ft
- T605AA250X100 2-1/2" 63mm 2.99" 76mm 150 PSI 30 in Hg 7.5" 1.40 lbs/ft
- T605AA300X100 3" 76mm 3.50" 89mm 150 PSI 30 in Hg 9" 1.59 lbs/ft
- T605AA400X100 4" 102mm 4.57" 116mm 150 PSI 30 in Hg 12" 2.29 lbs/ft
T605AA600X20 T605AA600X100 6" 152mm 6.69" 170mm 150 PSI 25 in Hg 24" 4.86 lbs/ft
T605AA800X20 - 8" 203mm 8.86" 225mm 150 PSI 25 in Hg 32" 7.74 lbs/ft
