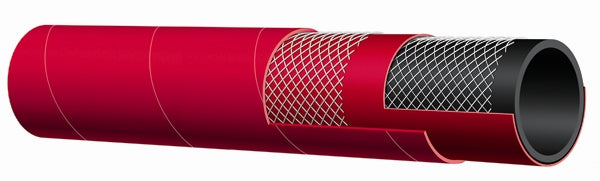

T605AH300X100 Alfagomma by Kuriyama | T605AH Series | Petroleum Suction & Discharge Hose | 3" ID | 3.46" OD | 150 PSI | Red | 100ft Length

T605AH300X100 Alfagomma by Kuriyama | T605AH Series | Petroleum Suction & Discharge Hose | 3" ID | 3.46" OD | 150 PSI | Red | 100ft Length

Save $661.30 Save $661.30
$2,126.19
$2,126.19 - $2,126.19
$2,126.19
$1,464.89
$1,464.89 - $1,464.89
$1,464.89

Kuriyama of America Inc.
Alfagomma | T605AH Series | Petroleum Suction & Discharge Hose

For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.

Package Quantity: 100 Foot

Specifications for Variant SKU: T605AH300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T605AH Series
Hose Color(s): Red
Internal Diameter: 3in
Outer Diameter: 3.46in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.
Other Ratings: - Tube: Black conductive NBR.
Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Red CR - abrasion, ozone and hydrocarbon resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Branding: ALFAGOMMA - ITALY T605 - 10 BAR (150 PSI) PETROLEUM - S & D (in yellow letters)
Note: T605 is not recommended for use on a reel.
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T605AH150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 30 in Hg 6" 0.73 lbs/ft
T605AH200X100 2" 51mm 2.40" 61mm 150 PSI 30 in Hg 8" 0.94 lbs/ft
T605AH300X100 3" 76mm 3.46" 88mm 150 PSI 27 in Hg 12" 1.74 lbs/ft
T605AH400X100 4" 102mm 4.57" 116mm 150 PSI 27 in Hg 16" 2.41 lbs/ft
