T606AE300X100 Alfagomma by Kuriyama | T606AE Series | Corrugated Petroleum Suction & Discharge Arctic Hose | 3" ID | 3.54" OD | 150 PSI | Blue | 100ft Length

T606AE300X100 Alfagomma by Kuriyama | T606AE Series | Corrugated Petroleum Suction & Discharge Arctic Hose | 3" ID | 3.54" OD | 150 PSI | Blue | 100ft Length

Save $756.84 Save $756.84
$2,792.88
$2,792.88 - $2,792.88
$2,792.88
$2,036.04
$2,036.04 - $2,036.04
$2,036.04

Kuriyama of America Inc.

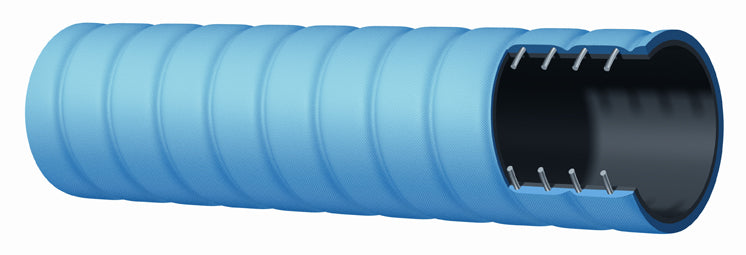

Alfagomma | T606AE Series | Corrugated Petroleum Suction & Discharge Arctic Hose

For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.

Use where extreme flexibility is needed in low temperature.

Package Quantity: 100 Foot

Specifications for Variant SKU: T606AE300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T606AE Series
Hose Color(s): Blue
Internal Diameter: 3in
Outer Diameter: 3.54in
Tubing Construction: Nitrile
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Where extreme flexibility is needed in low temperature.
Other Ratings: - Tube: Black conductive NBR.
Reinforcement: High tensile textile cords with flexible steel helix wire. Cover: Blue corrugated - abrasion, ozone and hydrocarbon resistant.
Service Temperature Range: -65°F (-54°C) to +180°F (+82°C) Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Branding: ALFAGOMMA - ITALY T606 - 10 BAR (150 PSI) PETROLEUM - S & D Arctic (in blue letters on yellow layline)
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T606AE200X100 2" 51mm 2.48" 63mm 150 PSI 30 in Hg 3" 1.06 lbs/ft
T606AE300X100 3" 76mm 3.54" 90mm 150 PSI 30 in Hg 4-1/2" 1.84 lbs/ft
T606AE400X100 4" 102mm 4.57" 116mm 150 PSI 30 in Hg 6" 2.67 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
