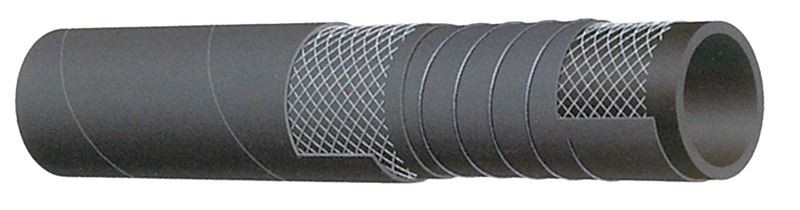

T614AA200X100 Alfagomma by Kuriyama | T614AA Series | Hot Tar & Asphalt Suction & Discharge Hose | 2" ID | 2.72" OD | 150 PSI | Black | 100ft Length

Save $822.07

$3,277.06

$3,277.06 - $3,277.06

$3,277.06

$2,454.99

$2,454.99 - $2,454.99

$2,454.99

Kuriyama of America Inc.
Alfagomma | T614AA Series | Hot Tar & Asphalt Suction & Discharge Hose

For hot tar and asphalt suction and discharge service.

Package Quantity: 100 Foot

Specifications for Variant SKU: T614AA200X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T614AA Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.72in
Tubing Construction:	Nitrile
Cover Construction:	Chlorosulfonated Polyethylene

SPECIFICATIONS

Application:	Hot tar and asphalt suction and discharge service.
Other Ratings:	-	Tube:	Black NBR - hot tar and asphalt resistant.
Reinforcement:	High tensile textile cords with steel helix wire.	Cover:	Black CSM - abrasion, ozone and hot tar resistant.
Service Temperature Range:	-4°F (-20°C) to +356°F (+180°C)	Coupling Suggestions:	Permanently attached couplings are suggested for assemblies.
Branding:	ALFAGOMMA - ITALY T614 10 BAR (150 PSI) HOT TAR AND ASPHALT (on red stripe)

Part Number 100ft	ID		OD		Wall Thickness	Max Rec. Working Pressure	Vacuum	Min. Bend Radius	Weight
Part Number 100ft	(in)	(mm)	(in)	(mm)	(mm)	PSI	in Hg	(in)	lbs/ft
T614AA200X100	2"	51mm	2.72"	69mm	9mm	150 PSI	30"	10"	1.64 lbs/ft
T614AA300X100	3"	76mm	3.78"	96mm	10mm	150 PSI	27"	15"	2.69 lbs/ft
T614AA400X100	4"	102mm	4.80"	122mm	10mm	150 PSI	27"	20"	3.57 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
