T620AA600X20 Alfagomma by Kuriyama | T620AA Series | Fuel & Oil Suction & Discharge Hose | 6" ID | 6.69" OD | 300 PSI | Black | 20ft Length

T620AA600X20 Alfagomma by Kuriyama | T620AA Series | Fuel & Oil Suction & Discharge Hose | 6" ID | 6.69" OD | 300 PSI | Black | 20ft Length

Save $602.52 Save $602.52
$1,737.16
$1,737.16 - $1,737.16
$1,737.16
$1,134.64
$1,134.64 - $1,134.64
$1,134.64

Kuriyama of America Inc.
Alfagomma | T620AA Series | Fuel & Oil Suction & Discharge Hose

For Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications.

Package Quantity: 20 Foot

Specifications for Variant SKU: T620AA600X20 Kuriyama | 20 |
Brand: Alfagomma
Series: T620AA Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.69in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Conductive Tube

SPECIFICATIONS

Application: Fuel and oil suction and discharge for up to 50% aromatic content. Designed for heavy duty applications.
Other Ratings: - Tube: Black conductive NBR.

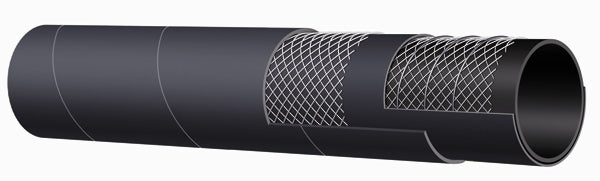

Reinforcement: High tensile textile cords with steel helix wire and static wire. Cover: Black conductive CR - abrasion, ozone and hydrocarbon resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Branding: ALFAGOMMA - ITALY T620 - 20 BAR (300 PSI) PETROLEUM - S & D Ω (in red letters)
Part Number
20ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
- T620AA200X100 2" 51mm 2.48" 63mm 300 PSI 30 in Hg 8" 1.10 lbs/ft
- T620AA300X100 3" 76mm 3.54" 90mm 300 PSI 27 in Hg 12" 1.77 lbs/ft
- T620AA400X100 4" 102mm 4.57" 116mm 300 PSI 27 in Hg 16" 2.43 lbs/ft
T620AA600X20 T620AA600X100 6" 152mm 6.69" 170mm 300 PSI 24 in Hg 24" 5.60 lbs/ft
T620AA800X20 - 8" 203mm 8.86" 225mm 300 PSI 21 in Hg 32" 9.24 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
