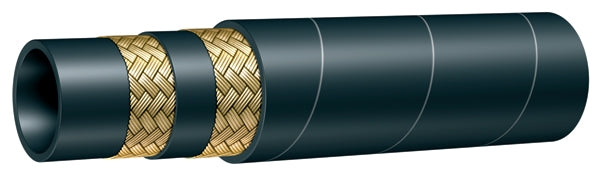

T631AA075X50 Alfagomma by Kuriyama | T631AA Series | Hot Tar & Asphalt Applicator Delivery Hose | 3/4" ID | 1.26" OD | 300 PSI | Black | 50ft Length

Save $101.75

$534.10

$534.10 - $534.10

$534.10

$432.35

$432.35 - $432.35

$432.35

Kuriyama of America Inc.
Alfagomma | T631AA Series | Hot Tar & Asphalt Applicator Delivery Hose

For hot tar and asphalt delivery service.

Package Quantity: 50 Foot

Specifications for Variant SKU: T631AA075X50 Kuriyama \| 50 \|
Brand:	Alfagomma
Series:	T631AA Series
Hose Color(s):	Black
Internal Diameter:	0.75in - 3/4in
Outer Diameter:	1.26in
Tubing Construction:	Nitrile
Cover Construction:	Chloroprene

Application:	Hot tar and asphalt delivery service.
Other Ratings:	-	Tube:	Black NBR - hot tar and asphalt resistant.
Reinforcement:	High tensile steel wire braids.	Cover:	Black CR - abrasion, ozone, hydrocarbon and fire resistant.
Service Temperature Range:	-22°F (-30°C) to +356°F (+180°C)	Coupling Suggestions:	Permanently attached couplings are suggested for assemblies.
Branding:	ALFAGOMMA - ITALY T631 20 BAR (300 PSI) HOT TAR AND ASPHALT (embossed)
Safety Factor:	10:1

Part Number 50ft	Part Number 100ft	ID		OD		Wall Thickness	Max Rec. Working Pressure	Min. Bend Radius	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	(mm)	PSI	(in)	lbs/ft
T631AA075X50	T631AA075X100	3/4"	19mm	1.26"	32mm	6mm	300 PSI	3"	0.50 lbs/ft
-	T631AA100X100	1"	25mm	1.50"	38mm	6mm	300 PSI	3"	0.77 lbs/ft
