T654AA019 Alfagomma by Kuriyama | T654AA Series | Small Engine Fuel Transfer Hose | SAE J30R7 | 3/16" ID | 0.47" OD | 300 PSI | 950ft Length

T654AA019 Alfagomma by Kuriyama | T654AA Series | Small Engine Fuel Transfer Hose | SAE J30R7 | 3/16" ID | 0.47" OD | 300 PSI | 950ft Length

Save $360.51 Save $360.51
$1,795.52
$1,795.52 - $1,795.52
$1,795.52
$1,435.01
$1,435.01 - $1,435.01
$1,435.01

Kuriyama of America Inc.
Alfagomma | T654AA Series | Small Engine Fuel Transfer Hose - SAE J30R7

Designed for small engine marine and automotive fuel and oil transfer applications such as boat engines, lawnmowers, generators and snowmobiles.

Hose comes in up to three pieces (min. 30ft length) per reel.

Package Quantity: 950 Foot

Specifications for Variant SKU: T654AA019 Kuriyama | 950 |
Brand: Alfagomma
Series: T654AA Series
Hose Color(s): Black
Internal Diameter: 0.19in
Outer Diameter: 0.47in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Applications: For small engine marine and automotive fuel and oil transfer applications such as boat engines, lawnmowers, generators and snowmobiles.
Ratings: SAE J30R7 Tube: Conductive Nitrile (NBR).
Reinforcement: High tensile textile braids. Cover: Conductive Neoprene (CR) hydrocarbon resistant.
Service Temperature Range: -40°F (-40°C) to +257°F (+125°C) Coupling Suggestions: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.

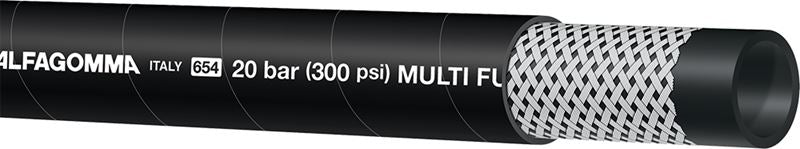

Branding: ALFAGOMMA-ITALY- 654 EVOLUTION 20 bar (300 psi) MULTI FUEL SAE 30R7 ID mm- QQ/YY (white inkjet lettering)
Other Features:
  • Broad Fuel Resistance - Exhibits resistance to a wide range of fuels. Meets SAE J30R7 compliance, meaning it can be used in a variety of fuel applications including gasoline, oil, diesel fuel and lubrication for internal combustion engines in mobile, stationary and marine applications.
  • Comprehensive Small Size Range - Wide variety of small sizes available starting at 3/16" all the way up to 1".
  • High Kink Resistance - Possesses a highly durable construction for a soft wall hose; resists the kinking, ovaling and elongation that can affect similar spaghetti style hoses.
  • Easy Installation - Flexible and lightweight construction for ease of installation in tight spaces.
Part Number ID OD Max Rec.
Working Pressure*		 Standard
Length Reel		 Weight
(in) (mm) (in) (mm) PSI ft (lbs/ft)
T654AA019 3/16" 5mm 0.47" 12mm 300 PSI 950ft 0.07 lbs/ft
T654AA025 1/4" 6mm 0.51" 13mm 300 PSI 820ft 0.09 lbs/ft
T654AA031 5/16" 8mm 0.59" 15mm 300 PSI 720ft 0.11 lbs/ft
T654AA038 3/8" 10mm 0.67" 17mm 300 PSI 620ft 0.12 lbs/ft
T654AA050 1/2" 13mm 0.79" 20mm 300 PSI 600ft 0.15 lbs/ft
T654AA062 5/8" 16mm 0.94" 24mm 300 PSI 450ft 0.21 lbs/ft
T654AA075 3/4" 19mm 1.06" 27mm 300 PSI 330ft 0.23 lbs/ft
T654AA100 1" 25mm 1.34" 34mm 300 PSI 220ft 0.34 lbs/ft

* 3-to-1 safety factor
