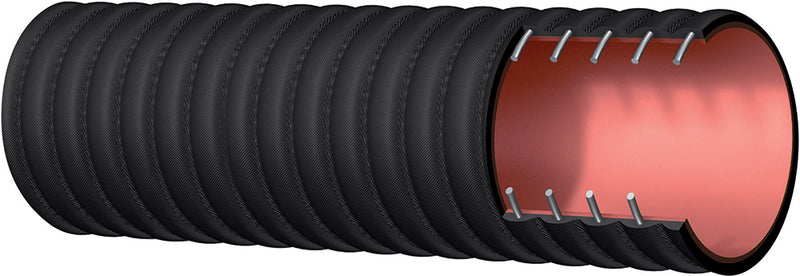

T704HA600X100 Alfagomma by Kuriyama | T704HA Series | "The Boomer" Industrial Sewer Vacuum Hose | 6" ID | 7.04" OD | 150 PSI | Black | 100ft Length

T704HA600X100 Alfagomma by Kuriyama | T704HA Series | "The Boomer" Industrial Sewer Vacuum Hose | 6" ID | 7.04" OD | 150 PSI | Black | 100ft Length

Save $1,250.12 Save $1,250.12
$5,563.88
$5,563.88 - $5,563.88
$5,563.88
$4,313.76
$4,313.76 - $4,313.76
$4,313.76

Kuriyama of America Inc.
Alfagomma | T704HA Series | "The Boomer" Industrial Sewer Vacuum Hose

- Material handling suction/discharge.
- Industrial vacuum equipment applications.
- Great hose for dry or wet abrasive materials.
- Popular hose for vacuum truck industry where a rugged and durable hose product is needed.
- Drill cutting suction hose in mobile drilling rigs.

Package Quantity: 100 Foot

Specifications for Variant SKU: T704HA600X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T704HA Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 7.04in
Tubing Construction: Gum Rubber
Cover Construction: SBR/NR Blend

SPECIFICATIONS

Application: - Material handling suction/discharge.
- Industrial vacuum equipment applications.
- Great hose for dry or wet abrasive materials.
- Popular hose for vacuum truck industry where a rugged and durable hose product is needed.
- Drill cutting suction hose in mobile drilling rigs.
Other Ratings: - Tube: 1/4" thick red gum rubber tube for abrasion-resistance.
Reinforcement: High tensile textile fabric with embedded steel helical wire. Cover: Corrugated black conductive SBR/NR blend cover for abrasion and ozone-resistance.
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA ITALY 10 bar (150 psi) HEAVY DUTY INDUSTRIAL VACUUM S&D
Features and Advantages:
  • Abrasion Resistant Tube - 1/4" gum rubber tube designed for wet or dry applications where severe abrasion is a factor. Provides for long hose service life.
  • Heavy Duty Construction - Thick tube and cover, high tensile strength fabric and durable steel helix wire designed for high pressure and vacuum application. All sizes rated to full vacuum, and PSI safety factor 3:1 (2"-8") and 2.5:1 (10").
  • Grounding Wire - Steel wire helps prevent the build-up of static electricity and to help keep material flowing smoothly. (Caution: This product is Designed to help dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.)
  • Corrugated Outer Cover - Provides increased hose flexibility.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Cuffed Ends Available - Available with soft cuffed ends for easy installation and clamping.
Part Number
35ft		 Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius		 Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
- T704HA200X50 T704HA200X100 2" 51mm 2.87" 69mm 150 PSI 30 in Hg 6" 1.41 lbs/ft
- - T704HA300X100 3" 76mm 3.69" 96mm 150 PSI 30 in Hg 9" 2.40 lbs/ft
- T704HA400X50 T704HA400X100 4" 102mm 5.03" 122mm 150 PSI 30 in Hg 12" 3.39 lbs/ft
- - T704HA500X100 5" 127mm 6.22" 149mm 150 PSI 30 in Hg 15" 4.31 lbs/ft
- T704HA600X50 T704HA600X100 6" 152mm 7.04" 174mm 150 PSI 30 in Hg 24" 5.13 lbs/ft
T704HA800X35 T704HA800X50 T704HA800X100 8" 203mm 9.00" 227mm 150 PSI 30 in Hg 32" 9.26 lbs/ft
T704HA1000X35 - - 10" 254mm 11.22" 283mm 150 PSI 30 in Hg 40" 13.82 lbs/ft
