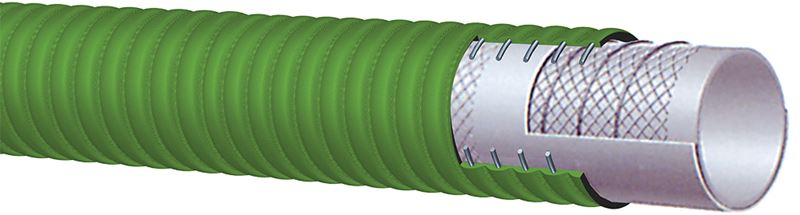

T714LG500X20 Alfagomma by Kuriyama | T714LG Series | FDA Corrugated Dry Food Material Handling Hose | 5" ID | 5.63" OD | 75 PSI | Green | 20ft Length

Save $448.44

$1,050.13

$1,050.13 - $1,050.13

$1,050.13

$601.69

$601.69 - $601.69

$601.69

Kuriyama of America Inc.
Alfagomma | T714LG Series | FDA Corrugated Dry Food Material Handling Hose

For suction or discharge of wet or dry abrasive materials.

Suitable for handling materials for human consumption.

Package Quantity: 20 Foot

Specifications for Variant SKU: T714LG500X20 Kuriyama \| 20 \|
Brand:	Alfagomma
Series:	T714LG Series
Hose Color(s):	Green
Internal Diameter:	5in
Outer Diameter:	5.63in
Tubing Construction:	Gum Rubber
Cover Construction:	Natural Rubber/SBR Blend
Applicable Specs & Approvals:	Applicable FDA Requirements
Special Properties:	Food Grade

Application:	For suction or discharge of wet or dry abrasive materials. Suitable for handling materials for human consumption.
Other Ratings:	Meets FDA requirements.	Tube:	Natural white gum rubber 3/16" thick. Meets FDA requirements.
Reinforcement:	Spiraled high tensile textile cords with flexible steel helix wire and static wire.	Cover:	Green corrugated Nat/SBR blend rubber.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding:	ALFAGOMMA - ITALY T714 - 5 Bar (75 PSI) - BULK FOOD & MATERIAL - S & D (in white letters)

Part Number 20ft	Part Number 50ft	ID		OD		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight
Part Number 20ft	Part Number 50ft	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft
T714LG500X20	T714LG500X50	5"	127mm	5.63"	143mm	75 PSI	24 in Hg	12.5"	3.8 lbs/ft
T714LG600X20	T714LG600X50	6"	152mm	6.85"	174mm	75 PSI	24 in Hg	24"	4.75 lbs/ft
T714LG800X20	-	8"	203mm	8.94"	227mm	75 PSI	21 in Hg	32"	7.01 lbs/ft
