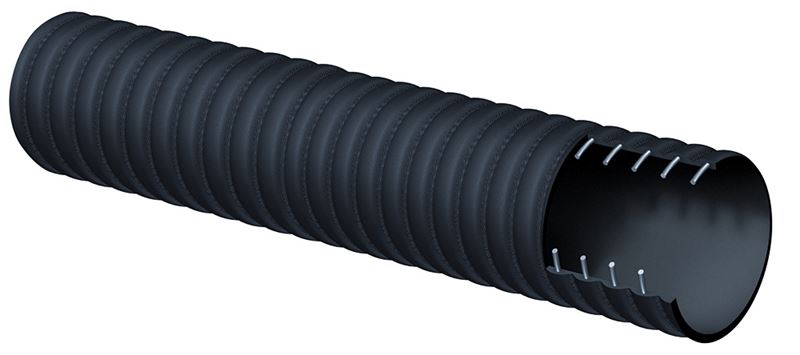

T719AA200X100 Alfagomma by Kuriyama | T719AA Series | Abrasive Slurry Suction & Discharge Hose | 2" ID | 2.95" OD | 150 PSI | Black | 100ft Length

Save $736.25

$2,645.18

$2,645.18 - $2,645.18

$2,645.18

$1,908.93

$1,908.93 - $1,908.93

$1,908.93

Kuriyama of America Inc.
Alfagomma | T719AA Series | Abrasive Slurry Suction & Discharge Hose

Designed to handle highly abrasive materials such as coal, sand and stone.

Ideal for mining, rock quarries, and cement industries.

Package Quantity: 100 Foot

Specifications for Variant SKU: T719AA200X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T719AA Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.95in
Tubing Construction:	Natural Rubber
Cover Construction:	Chloroprene
Special Properties:	Conductive Tube, Conductive Hose Cover
Compatible with the following Series:	ALFAMUFF Series \| ALFASEAL Series

Other Features:
Applications:	- Mining Industry (crushed/ground ore, washed coal and waste products) - Rock quarries (crushed/ground ore, sand and river stone) - Cement industry (lime, stone and other slurries
Other Ratings:	-	Tube:	Black conductive NR-abrasion resistance 50 mm3.
Reinforcement:	High tensile textile cords with embedded steel helical wire.	Cover:	Corrugated black conductive CR-abrasion, ozone, seawater and hydrocarbon resistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	ALFAMUFF Series Field Replaceable Fixed Flange-Muff Couplings
Branding:	ALFAGOMMA ITALY 719 10 bar (150 psi) BULK MATERIAL HANDLING S&D Ω (in white letters)
Abrasive Resistant Tube - Thick, highly abrasion resistant natural rubber (NR) tube. Designed to handle highly abrasive materials such as coal, sand and stone. Heavy Duty Construction - High tensile cords with embedded steel wire helix designed for applications where the hose will be subject to abuse. Its chloroprene cover resists weathering, ozone, hydrocarbons and seawater. Corrugated Outer Cover - Corrugated outer cover provides additional flexibility versus smooth cover hoses. Conductive Materials - Conductive tube and cover materials dissipate static in potentially explosive environments.

Part Number 100ft	ID		OD		Tube Thickness		Max Rec. Working Pressure	Vacuum	Min. Bend Radius at 68°F	Weight	Compatible ALFAMUFF Series Fixed Flange-Muff Coupling
Part Number 100ft	(in)	(mm)	(in)	(mm)	(in)	(mm)	PSI	in Hg	(in)	lbs/ft	Compatible ALFAMUFF Series Fixed Flange-Muff Coupling
T719AA200X100	2"	51mm	2.95"	75mm	0.236"	6mm	150 PSI	30 in Hg	10"	2.09 lbs/ft	ALFAMUFF200
T719AA300X100	3"	76mm	4.49"	114mm	0.354"	9mm	150 PSI	30 in Hg	15"	4.96 lbs/ft	ALFAMUFF300
T719AA400X100	4"	102mm	5.24"	133mm	0.315"	8mm	150 PSI	30 in Hg	20"	5.25 lbs/ft	ALFAMUFF400
T719AA600X100	6"	152mm	7.40"	188mm	0.315"	8mm	150 PSI	30 in Hg	30"	9.53 lbs/ft	ALFAMUFF600
T719AA800X100	8"	203mm	9.57"	243mm	0.315"	8mm	150 PSI	30 in Hg	48"	12.53 lbs/ft	ALFAMUFF800
T719AA1000X100	10"	254mm	11.57"	294mm	0.315"	8mm	150 PSI	30 in Hg	80"	15.70 lbs/ft	ALFAMUFF1000
T719AA1200X40	12"	305mm	13.94"	354mm	0.354"	9mm	150 PSI	30 in Hg	96"	19.41 lbs/ft	ALFAMUFF1200
