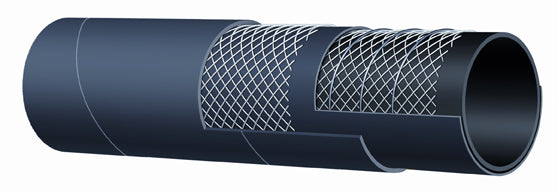

T720AA400X100 Alfagomma by Kuriyama | T720AA Series | Bulk Material Suction & Discharge Hose | 4" ID | 4.57" OD | 150 PSI | Black | 100ft Length

T720AA400X100 Alfagomma by Kuriyama | T720AA Series | Bulk Material Suction & Discharge Hose | 4" ID | 4.57" OD | 150 PSI | Black | 100ft Length

Save $797.35 Save $797.35
$3,090.46
$3,090.46 - $3,090.46
$3,090.46
$2,293.11
$2,293.11 - $2,293.11
$2,293.11

Kuriyama of America Inc.
Alfagomma | T720AA Series | Bulk Material Suction & Discharge Hose

For suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement.

Package Quantity: 100 Foot

Specifications for Variant SKU: T720AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T720AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: Natural Rubber
Cover Construction: SBR/NR Blend
Special Properties: Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Application: For suction and discharge of wet or dry abrasive materials. Designed for grains and dry cement.
Other Ratings: - Tube: 3/16" black conductive NR - abrasion resistant.
Reinforcement: Spiraled high tensile textile cords with flexible steel helix wire. Cover: Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA - ITALY T720 - BULK MATERIAL - S & D (in white letters)
Part Number
20ft		 Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
- - T720AA200X100 2" 51mm 2.56" 65mm 150 PSI 30" 6" 0.97 lbs/ft
- - T720AA300X100 3" 76mm 3.54" 90mm 150 PSI 27" 9" 1.54 lbs/ft
- T720AA400X50 T720AA400X100 4" 102mm 4.57" 116mm 150 PSI 27" 12" 2.15 lbs/ft
T720AA500X20 T720AA500X50 - 5" 127mm 5.63" 143mm 75 PSI 24" 20" 3.20 lbs/ft
T720AA600X20 T720AA600X50 - 6" 152mm 6.61" 168mm 75 PSI 24" 24" 4.01 lbs/ft
T720AA800X20 - - 8" 203mm 8.70" 221mm 75 PSI 21" 32" 6.05 lbs/ft
