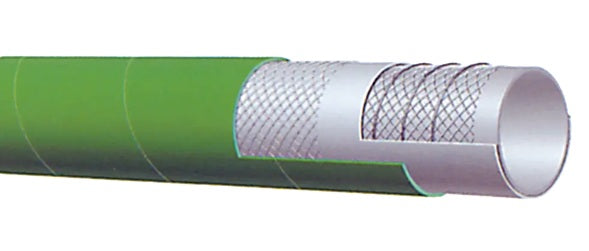

T720LG500X20 Alfagomma by Kuriyama | T720LG Series | FDA Dry Bulk Food Suction & Discharge Hose | 5" ID | 5.71" OD | 75 PSI | Green | 20ft Length

T720LG500X20 Alfagomma by Kuriyama | T720LG Series | FDA Dry Bulk Food Suction & Discharge Hose | 5" ID | 5.71" OD | 75 PSI | Green | 20ft Length

Save $542.63 Save $542.63
$1,354.99
$1,354.99 - $1,354.99
$1,354.99
$812.36
$812.36 - $812.36
$812.36

Kuriyama of America Inc.
Alfagomma | T720LG Series | Bulk Food Suction & Discharge Hose

For the Suction and discharge of wet or dry abrasive materials.

Designed for grains, flour and pellet transfer.

Package Quantity: 20 Foot

Specifications for Variant SKU: T720LG500X20 Kuriyama | 20 |
Brand: Alfagomma
Series: T720LG Series
Hose Color(s): Green
Internal Diameter: 5in
Outer Diameter: 5.71in
Tubing Construction: Gum Rubber
Cover Construction: SBR/EPDM Blend
Applicable Specs & Approvals: Applicable FDA Requirements
Special Properties: Food Grade

SPECIFICATIONS

Application: Suction and discharge of wet or dry abrasive materials. Designed for grains, flour and pellet transfer.
Other Ratings: Meets FDA requirements. Tube: Natural white gum rubber 3/16" thick. Meets FDA requirements.
Reinforcement: Spiraled high tensile textile cords with flexible steel helix wire and static wire.
Please note: Proper grounding of static wire will prolong tube life.		 Cover: Green SBR/EPDM blend - abrasion and ozone resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: ALFAGOMMA - ITALY T720 - BULK FOOD & MATERIAL - S & D (in white letters)
Part Number
20ft		 Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
- - T720LG200X100 2" 51mm 2.64" 67mm 150 PSI 30 in Hg 6" 1.23 lbs/ft
- - T720LG300X100 3" 76mm 3.62" 92mm 150 PSI 27 in Hg 9" 1.91 lbs/ft
- T720LG400X50 T720LG400X100 4" 102mm 4.65" 118mm 150 PSI 27 in Hg 12" 2.63 lbs/ft
T720LG500X20 T720LG500X50 - 5" 127mm 5.71" 145mm 75 PSI 24 in Hg 20" 3.81 lbs/ft
T720LG600X20 T720LG600X50 - 6" 152mm 6.69" 170mm 75 PSI 24 in Hg 24" 4.72 lbs/ft
T720LG800X20 - - 8" 203mm 8.78" 223mm 75 PSI 21 in Hg 32" 7.01 lbs/ft
