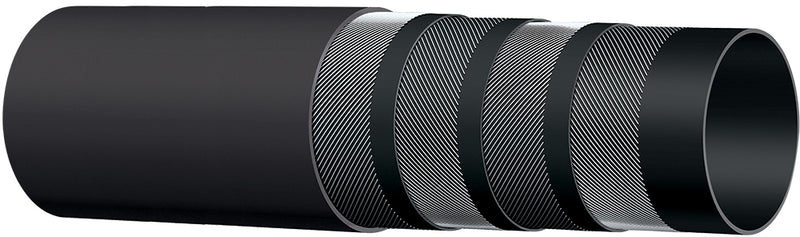

T74SAA300X100 Alfagomma by Kuriyama | Conqueror™ T74SAA Series | Construction Duty Concrete Pumping Hose | 3" ID | 3.97" OD | 1275 PSI | Black | 100ft Length

T74SAA300X100 Alfagomma by Kuriyama | Conqueror™ T74SAA Series | Construction Duty Concrete Pumping Hose | 3" ID | 3.97" OD | 1275 PSI | Black | 100ft Length

Save $742.00 Save $742.00
$2,686.27
$2,686.27 - $2,686.27
$2,686.27
$1,944.27
$1,944.27 - $1,944.27
$1,944.27

Kuriyama of America Inc.
Alfagomma | Conqueror™ T74SAA Series | Construction Duty Textile Reinforced Concrete Pumping Hose

Easy-handling, textile-reinforced construction for use on trailer mounted line pumps where longer hose lengths are required.

Package Quantity: 100 Foot

Specifications for Variant SKU: T74SAA300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: Conqueror Series, T74SAA Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.97in
Tubing Construction: Natural Rubber
Cover Construction: SBR/Nitrile Blend
Special Properties: Conductive Tube, Conductive Hose Cover

SPECIFICATIONS

Applications: For use on trailer mounted line pumps where longer hose lengths are required.
Other Ratings: - Tube: Black conductive NR - abrasion resistant.
Reinforcement: High tensile textile cords. Cover: Black conductive SBR/NR blend - abrasion and ozone resistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: CHC-CA Series "California Style" couplings
Branding: ALFAGOMMA - ITALY T74S 85 BAR (1275 PSI) W. P. HEAVY DUTY CONCRETE PUMPING (in yellow letters)
Other Features:
  • Heavy Duty Construction - Durable, thick walled construction, resists kinking, elongation and vibration during operation. All sizes rated to working pressure of 1275 PSI with 2:1 safety factor.
  • Textile Yarn Reinforcement - Operator friendly, lighter weight versus wire reinforced hoses for easier handling while still providing extended service life in heavy-duty applications.
  • Abrasion Resistant Tube and Cover - The NR (natural rubber) tube resists the wear caused by the flow of abrasive concrete. The SBR/NR blend cover resists the wear caused by dragging over rough surfaces, as well as environmental (UV/ozone) damage.
  • Cold Flex Materials - Hose remains flexible in sub-zero temperatures.
Part Number
50ft		 Part Number
100ft		 ID OD Wall
Thickness		 Max Rec.
Working
Pressure		 Min.
Bend Radius
at 68°F		 Weight
(in) (mm) (in) (mm) (mm) PSI (in) lbs/ft
- T74SAA200X100 2" 51mm 2.80" 71mm 10mm 1275 PSI 10" 1.45 lbs/ft
- T74SAA250X100 2-1/2" 63mm 3.27" 83mm 10mm 1275 PSI 10-1/2" 1.78 lbs/ft
T74SAA300X50 T74SAA300X100 3" 76mm 3.97" 101mm 12mm 1275 PSI 15" 2.46 lbs/ft
- T74SAA350X100 3-1/2" 90mm 4.57" 116mm 13mm 1275 PSI 17-1/2" 2.87 lbs/ft
- T74SAA400X100 4" 102mm 5.04" 128mm 13mm 1275 PSI 20" 3.34 lbs
