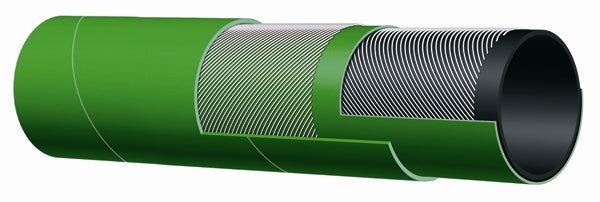

T753AG100X50 Alfagomma by Kuriyama | T753AG Series | 4-Ply Abrasive Material Blast Hose | 1" ID | 1.89" OD | 180 PSI | Green | 50ft Length

T753AG100X50 Alfagomma by Kuriyama | T753AG Series | 4-Ply Abrasive Material Blast Hose | 1" ID | 1.89" OD | 180 PSI | Green | 50ft Length

Save $108.82 Save $108.82
$461.65
$461.65 - $461.65
$461.65
$352.83
$352.83 - $352.83
$352.83

Kuriyama of America Inc.
Alfagomma | T753AG Series | 4-Ply Abrasive Material Blast Hose

Formerly T750AG Series

Designed to convey abrasives, sand and shot blast material.

Package Quantity: 50 Foot

Specifications for Variant SKU: T753AG100X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T753AG Series
Hose Color(s): Green
Internal Diameter: 1in
Outer Diameter: 1.89in
Tubing Construction: Natural Rubber
Cover Construction: SBR/NR Blend
Special Properties: Conductive Tube, Pin Pricked Hose Cover, Conductive Hose Cover

SPECIFICATIONS

Application: Designed to convey abrasives, sand and shot blast material.
Other Ratings: - Tube: Black static conducting natural rubber - offering excellent abrasion resistance, upgraded to 50mm3 (cubed) rating.
Reinforcement: High tensile textile cords - 4-ply construction. Cover: Black or green, conductive SBR/NR blend - abrasion and ozone resistant - pin pricked.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Sandblast couplings and nozzle holders attached with screws.
Branding: ALFAGOMMA - ITALY - 753 12 BAR (180 PSI) PREMIUM ABRASIVE MATERIAL BLAST Ω (in white letters)
T753AA Series | Black Cover
Part Number
50ft		 Part Number
100ft		 ID OD Tube Thickness Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) (mm) PSI lbs/ft
T753AA075X50 T753AA075X100 3/4" 19mm 1.50" 38mm 0.236mm 180 PSI 0.68 lbs/ft
T753AA100X50 T753AA100X100 1" 25mm 1.89" 48mm 0.283mm 180 PSI 1.04 lbs/ft
T753AA125X50 T753AA125X100 1-1/4" 32mm 2.17" 55mm 0.283mm 180 PSI 1.23 lbs/ft
T753AA150X50 T753AA150X100 1-1/2" 38mm 2.36" 60mm 0.260mm 180 PSI 1.40 lbs/ft
T753AA200X50 T753AA200X100 2" 51mm 2.87" 73mm 0.260mm 180 PSI 1.77 lbs/ft

NOTE: Tolerances according to RMA Class 311-A

T753AG Series | Green Cover
Part Number
50ft		 Part Number
100ft		 ID OD Tube Thickness Max Rec.
Working
Pressure		 Weight
(in) (mm) (in) (mm) (mm) PSI lbs/ft
T753AG075X50 T753AG075X100 3/4" 19mm 1.50" 38mm 0.236mm 180 PSI 0.68 lbs/ft
T753AG100X50 T753AG100X100 1" 25mm 1.89" 48mm 0.283mm 180 PSI 1.04 lbs/ft
T753AG125X50 T753AG125X100 1-1/4" 32mm 2.17" 55mm 0.283mm 180 PSI 1.23 lbs/ft
T753AG150X50 T753AG150X100 1-1/2" 38mm 2.36" 60mm 0.260mm 180 PSI 1.40 lbs/ft

NOTE: Tolerances according to RMA Class 311-A

Hose Id (in) Hose Ends Nozzle Holders Threaded Female Adapter Gaskets
3/4 Q-AL1, Q-BR1, Q-PI1 NH-AL1, NH-BR1 - SBG
1 Q-AL2, Q-BR2, Q-PI2 NH-AL2, NH-BR2 - SBG
1-1/4 Q-AL3, Q-BR3, Q-PI3 NH-AL3, NH-BR3 SB-AL1, SB-BR1 SBG
1-1/2 Q-AL4, Q-BR4, Q-PI4 NH-AL4, NH-BR4 SB-AL2, SB-BR2 SBG
