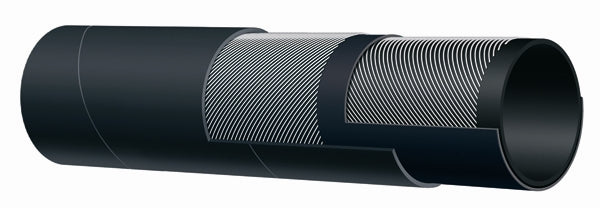

T755AA125X100 Alfagomma by Kuriyama | T755AA Series | 2-Ply Abrasive Material Blast Hose | 1-1/4" ID | 1.89" OD | 180 PSI | Black | 100ft Length

Save $245.68

$778.05

$778.05 - $778.05

$778.05

$532.37

$532.37 - $532.37

$532.37

Kuriyama of America Inc.
Alfagomma | T755AA Series | 2-Ply Abrasive Material Blast Hose

Formerly LT753AA Series

Designed to convey abrasives, sand and shot blast material.

Package Quantity: 100 Foot

Specifications for Variant SKU: T755AA125X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T755AA Series
Hose Color(s):	Black
Internal Diameter:	1.25in - 1-1/4in
Outer Diameter:	1.89in
Tubing Construction:	Natural Rubber
Cover Construction:	SBR/NR Blend
Special Properties:	Conductive Tube, Pin Pricked Hose Cover, Conductive Hose Cover

Application:	Designed to convey abrasives, sand and shot blast material.
Other Ratings:	-	Tube:	Black static conducting NR - offering excellent abrasion resistance, upgraded to 36mm3 (cubed) rating.
Reinforcement:	High tensile textile cords - 2-ply construction.	Cover:	Black conductive SBR/NR blend - abrasion and ozone resistant - pin pricked.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	-
Branding:	ALFAGOMMA - ITALY - 755 12 BAR (180 PSI) TOP ABRASIVE MATERIAL BLAST Ù (in white letters)

Part Number 50ft	Part Number 100ft	ID		OD		Tube Thickness	Max Rec. Working Pressure	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	(mm)	PSI	lbs/ft
T755AA050X100	T755AA050X50	1/2"	13mm	1.06"	27mm	0.212mm	180 PSI	0.34 lbs/ft
T755AA125X100	T755AA125X50	1-1/4"	32mm	1.89"	48mm	0.240mm	180 PSI	0.77 lbs/ft

NOTE: Tolerances according to RMA Class 311-A

Premature hose wear can be prevented if the proper nozzle size is used for the corresponding hose ID size. (See chart below)
Series	UB8	UB7	UB6	UB5	UB4
NOZZLE SIZE	1/2	7/16	3/8	5/16	1/4
CFM @ 100 PSI	350	260	200	150	90
AIR HOSE	2	1 1/2	1 1/2	1 1/4	1 1/4
S.B. HOSE SIZE	1 1/2	1 1/2	1 1/4	1 1/4	1
MAT. LB/HR	2250	1750	1260	900	540
