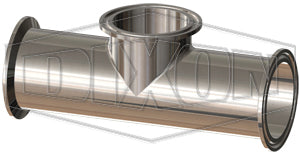

T7MPS-150PM Dixon Valve 1-1/2" Tube OD 316L Stainless Steel BioPharm Clamp x Clamp x Clamp Short Outlet Tee BPE2012 (PM Finish SF4)

T7MPS-150PM Dixon Valve 1-1/2" Tube OD 316L Stainless Steel BioPharm Clamp x Clamp x Clamp Short Outlet Tee BPE2012 (PM Finish SF4)

Save $68.80 Save $68.80
$172.00
$172.00 - $172.00
$172.00
$103.20
$103.20 - $103.20
$103.20

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Clamp x Clamp x Clamp Short Outlet Tee - T7MPS

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: T7MPS-150PM Dixon
Shape (Orientation): Tee
Ends Configuration: 1-1/2in Sanitary Clamp End, 1-1/2in Sanitary Clamp End, 1-1/2in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Electropolished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
A B OD ID
T7MPS-050PL T7MPS-050PM 1/2" 4.50" 1.00" 0.50" 0.37"
T7MPS-075PL T7MPS-075PM 3/4" 4.75" 1.13" 0.75" 0.62"
T7MPS-100PL T7MPS-100PM 1" 5.25" 1.13" 1.00" 0.87"
T7MPS-150PL T7MPS-150PM 1-1/2" 5.75" 1.38" 1.50" 1.37"
T7MPS-200PL T7MPS-200PM 2" 6.75" 1.63" 2.00" 1.87"
T7MPS-250PL T7MPS-250PM 2-1/2" 7.25" 1.88" 2.50" 2.37"
T7MPS-300PL T7MPS-300PM 3" 7.75" 2.13" 3.00" 2.87"
T7MPS-400PL T7MPS-400PM 4" 9.50" 2.75" 4.00" 3.83"
T7MPS-600PL T7MPS-600PM 6" 14.25" 4.63" 6.00" 5.78"
