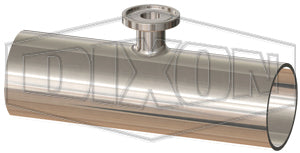

T7RWWMS300075PM Dixon Valve 3" x 3/4" Tube OD 316L Stainless Steel BioPharm Weld x Weld x Clamp Short Outlet Reducing Tee BPE2012 (PM Finish SF4)

T7RWWMS300075PM Dixon Valve 3" x 3/4" Tube OD 316L Stainless Steel BioPharm Weld x Weld x Clamp Short Outlet Reducing Tee BPE2012 (PM Finish SF4)

Save $94.10 Save $94.10
$235.25
$235.25 - $235.25
$235.25
$141.15
$141.15 - $141.15
$141.15

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Weld x Weld x Clamp Short Outlet Reducing Tee - T7RWWMS

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: T7RWWMS300075PM Dixon
Shape (Orientation): Tee
Ends Configuration: 3in Weld End, 3in Weld End, 3/4in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Electropolished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
A B
T7RWWMS075050PL T7RWWMS075050PM 3/4" x 1/2" 2.00" 1.00"
T7RWWMS100050PL T7RWWMS100050PM 1" x 1/2" 2.13" 1.13"
T7RWWMS100075PL T7RWWMS100075PM 1" x 3/4" 2.13" 1.13"
T7RWWMS150050PL T7RWWMS150050PM 1-1/2" x 1/2" 2.38" 1.38"
T7RWWMS150075PL T7RWWMS150075PM 1-1/2" x 3/4" 2.38" 1.38"
T7RWWMS150100PL T7RWWMS150100PM 1-1/2" x 1" 2.38" 1.38"
T7RWWMS200050PL T7RWWMS200050PM 2" x 1/2" 2.88" 1.63"
T7RWWMS200075PL T7RWWMS200075PM 2" x 3/4" 2.88" 1.63"
T7RWWMS200100PL T7RWWMS200100PM 2" x 1" 2.88" 1.63"
T7RWWMS200150PL T7RWWMS200150PM 2" x 1-1/2" 2.88" 1.63"
T7RWWMS250050PL T7RWWMS250050PM 2-1/2" x 1/2" 3.13" 1.88"
T7RWWMS250075PL T7RWWMS250075PM 2-1/2" x 3/4" 3.13" 1.88"
T7RWWMS250100PL T7RWWMS250100PM 2-1/2" x 1" 3.13" 1.88"
T7RWWMS250150PL T7RWWMS250150PM 2-1/2" x 1-1/2" 3.13" 1.88"
T7RWWMS250200PL T7RWWMS250200PM 2-1/2" x 2" 3.13" 1.88"
T7RWWMS300050PL T7RWWMS300050PM 3" x 1/2" 3.38" 2.13"
T7RWWMS300075PL T7RWWMS300075PM 3" x 3/4" 3.38" 2.13"
T7RWWMS300100PL T7RWWMS300100PM 3" x 1" 3.38" 2.13"
T7RWWMS300150PL T7RWWMS300150PM 3" x 1-1/2" 3.38" 2.13"
T7RWWMS300200PL T7RWWMS300200PM 3" x 2" 3.38" 2.13"
T7RWWMS300250PL - 3" x 2-1/2" 3.38" 2.13"
T7RWWMS400050PL T7RWWMS400050PM 4" x 1/2" 4.13" 2.63"
T7RWWMS400075PL T7RWWMS400075PM 4" x 3/4" 4.13" 2.63"
T7RWWMS400100PL T7RWWMS400100PM 4" x 1" 4.13" 2.63"
T7RWWMS400150PL T7RWWMS400150PM 4" x 1-1/2" 4.13" 2.63"
T7RWWMS400200PL T7RWWMS400200PM 4" x 2" 4.13" 2.63"
T7RWWMS400250PL T7RWWMS400250PM 4" x 2-1/2" 4.13" 2.63"
T7RWWMS400300PL T7RWWMS400300PM 4" x 3" 4.13" 2.63"
- T7RWWMS600200PM 6" x 2" - -
T7RWWMS600300PL - 6" x 3" 5.63" 3.63"
T7RWWMS600400PL - 6" x 4" 5.63" 3.75"
