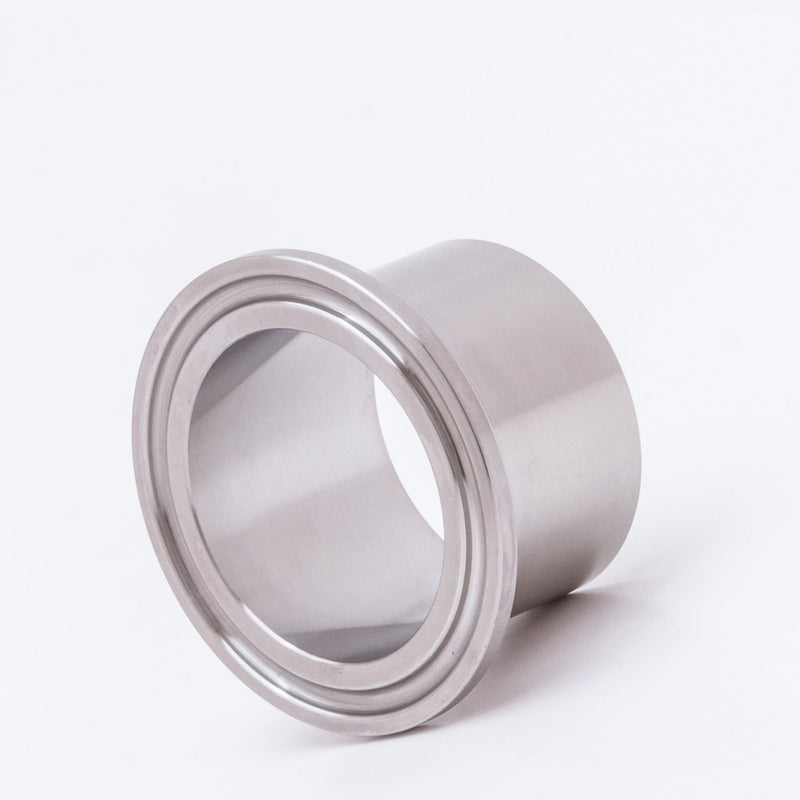

TCLW-3 316 by Campbell Fittings | 3A Fittings & Adapters | 3/4" Tri-Clamp x 3/4" Weld End | Long | Straight | 316 Stainless Steel

TCLW-3 316 by Campbell Fittings | 3A Fittings & Adapters | 3/4" Tri-Clamp x 3/4" Weld End | Long | Straight | 316 Stainless Steel

Save $5.45 Save $5.45
$11.88
$11.88 - $11.88
$11.88
$6.43
$6.43 - $6.43
$6.43

by Campbell
3A Fittings & Adapters:3A TRI-CLAMP X WELD LONG
Specifications for Variant SKU: TCLW-3 316 Campbell Fittings
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Special Properties: Long
Features and Benefits:
  • Campbell Crimpnology™ offers hose assembly systems for food grade hose applications.
  • Specially designed shank & ferrule lengths are matched for hose tube and cover protection.
  • Dedicated silicone bumper seat area on crimp hose fittings.
  • All products listed as 3A components are certified to meet 32 Ra minimum polish and all other 3A criteria under 3A RPSCQC.
  • Crimp specifications are provided for all hoses for proven performance (3A crimp process exception).
Part Number Hose Size
TCLW-2 316 1/2" x 1/2"
TCLW-3 316 3/4" x 3/4"
TCLW-4 316 1" x 1"
TCLW-6 316 1-1/2" x 1-1/2"
TCLW-8 316 2" x 2"
TCLW-10 316 2-1/2" x 2-1/2"
TCLW-12 316 3" x 3"
TCLW-16 316 4" x 4"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
