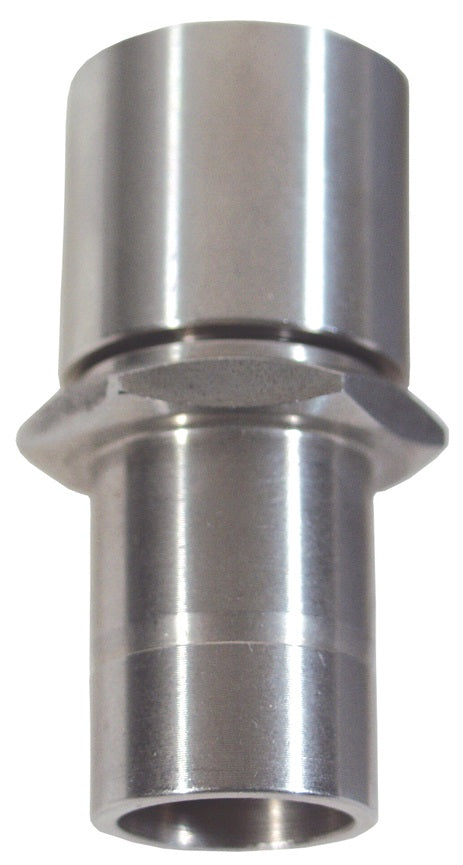

TES-04-04 by Dixon Valve | Crimp Fitting for PTFE Hose | Tube End Stub | with Crimp Collar | 1/4" Tube Size x -04 Hose Size | 304 Stainless Steel

Save $8.86

$22.15

$22.15 - $22.15

$22.15

$13.29

$13.29 - $13.29

$13.29

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | Tube End Stub

Crimp Collars for all Nominal fittings are included.

Specifications for Variant SKU: TES-04-04 Dixon
Series:	TES Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female JIC
Material(s):	304 Stainless Steel
Compatible with the following Series:	WSB Series \| BSB Series

Use:
For use with nominal smooth bore PTFE hoses.

304 Stainless Steel Part Number	Hose Size	Tube Size
TES-04-04	-04	1/4"
TES-06-06	-06	3/8"
TES-08-08	-08	1/2"
TES-12-12	-12	3/4"
TES-16-16	-16	1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
