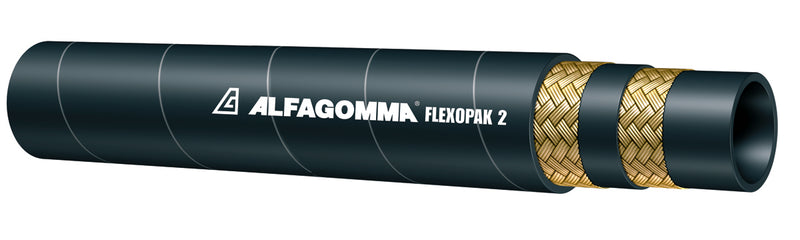

TF2MT-10 Alfagomma by Kuriyama | TF2MT Series | SAE 100R16 | Minetuff Hydraulic Hose | Double Compact Wire Braid | 5/8" ID | 0.91" OD | 4000 PSI

TF2MT-10 Alfagomma by Kuriyama | TF2MT Series | SAE 100R16 | Minetuff Hydraulic Hose | Double Compact Wire Braid | 5/8" ID | 0.91" OD | 4000 PSI

Save $1.92 Save $1.92
$6.73
$6.73 - $6.73
$6.73
$4.81
$4.81 - $4.81
$4.81

Kuriyama of America Inc.
Alfagomma | TF2MT Series | SAE 100R16 | Minetuff Hydraulic Hose | Double Compact Wire Braid

MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TF2MT-10 Kuriyama
Brand: Alfagomma, Minetuff
Series: TF2MT Series
Hose Color(s): Black
Dash Size: -10
Internal Diameter: 0.625in
Outer Diameter: 0.91in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R16, EN857 2SC, MSHA IC-152/16
Compatible with the following Series: B Series  |   AF1 Series
Application: High pressure service with tight bends with petroleum-based hydraulic fluids, water/glycol, water- and fire-resistant hydraulic fluids, hot oil, grease, lubricants, crude oil, fuel oils, air and water. Excellent impulse performance, exceeding 1,000,000 cycles when tested with appropriate ALFAGOMMA couplings. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. SAE Rating: SAE 100R16
Other Ratings: EN 857 2SC
MSHA IC-152/16 Approved Flame Resistance		 Tube: Synthetic rubber, black
Reinforcement: Two high tensile steel wire braids, separated by a layer of synthetic rubber Cover: Synthetic rubber, black... weather, oil, fuel, ozone and excellent abrasion-resistant
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) constant operation Air Maximum Temperature: +160°F (+70°C)
Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose.
Branding: ALFAGOMMA FLEXOPAK 2 ID ...WP ...MPa (... PSI) - EXCEEDS SAE 100 R16 - EN 857 2SC ...DN MSHA IC-152/16 ...Q/YR
Other Features:
  • Excellent abrasion resistance (10 times higher than EN-ISO 6945 requirements).
  • Reduces the need for any protective sleeve in applications requiring high abrasion resistance.
  • UV and ozone resistance (hose ageing reduction).
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TF2MT-04 1/4" 6.4mm 0.51" 13.0mm 6000 PSI 2.0" 50.8mm 0.18 lbs/ft
TF2MT-05 5/16" 8.0mm 0.57" 14.5mm 5500 PSI 2.2" 57.0mm 0.22 lbs/ft
TF2MT-06 3/8" 9.5mm 0.66" 16.8mm 5000 PSI 2.2" 55.9mm 0.26 lbs/ft
TF2MT-08 1/2" 12.7mm 0.81" 20.6mm 4500 PSI 3.5" 88.9mm 0.34 lbs/ft
TF2MT-10 5/8" 15.9mm 0.91" 23.2mm 4000 PSI 4.0" 101.6mm 0.41 lbs/ft
TF2MT-12 3/4" 19.1mm 1.09" 27.6mm 3500 PSI 4.7" 119.4mm 0.53 lbs/ft
TF2MT-16 1" 25.4mm 1.40" 35.5mm 3000 PSI 6.0" 152.4mm 0.86 lbs/ft
TF2MT-20 1-1/4" 31.8mm 1.65" 42.0mm 2000 PSI 8.3" 210.8mm 0.92 lbs/ft
TF2MT-24 1-1/2" 38.1mm 1.96" 49.9mm 1820 PSI 16.9" 429.3mm 1.32 lbs/ft
TF2MT-32 2" 50.8mm 2.50" 63.5mm 1500 PSI 21.6" 548.6mm 1.71 lbs/ft
TF2MT-40 2-1/2" 63.5mm 3.01" 76.4mm 1100 PSI 28.3" 718.8mm 2.21 lbs/ft
TF2MT-48 3" 76.2mm 3.54" 90.0mm 1000 PSI 34.6" 878.8mm 2.58 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.
