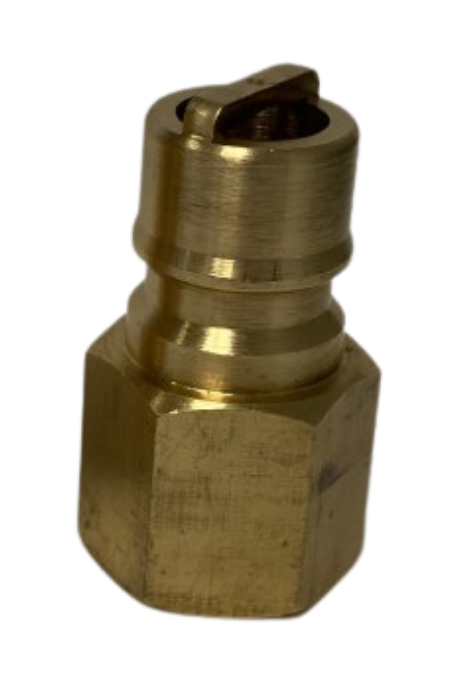

TGC-38PFB by ZSi-Foster | Thermal Gas Connector | Male Plug | 3/8" Female NPT | Brass

TGC-38PFB by ZSi-Foster | Thermal Gas Connector | Male Plug | 3/8" Female NPT | Brass

Save $11.35 Save $11.35
$28.37
$28.37 - $28.37
$28.37
$17.02
$17.02 - $17.02
$17.02

ZSi-Foster Quick Disconnect Couplings
Thermal Gas Connector

One-way shut-off safety couplings designed for the connection of gas fired devices or applications.
Specifications for Variant SKU: TGC-38PFB ZSi Foster
Shape (Orientation): Straight
Material(s): Brass
Applications:
  • Industrial
  • Food & Beverage
  • Fuel Gas Systems
Features:
  • Manual push to connect.
  • Automatic shut off when disconnected.
  • In case of fire, automatic closure to stop gas flow.
  • Multi-lingual instruction card.
  • Complete Sets Include: Socket, Plug, Protective Covers
Specifications:
  • Complies with the requirements of ANSI Z21.41-2014/CSA 6.9-2014.
  • CSA design certified, in both the United States and Canada, for natural gas, manufactured gas, liquified petroleum and LP gas-air mixtures at pressures not in excess of 1/2 psig {3.5 kPa).
Part Number Description Body Size Material Thread End Flow Capacity* Max Operating Pressure*
TGC-38FSB Complete Set 3/8" Brass Female NPT 50,000 BTU/HR 0.5 psi / 0.003 bar
TGC-50FSB Complete Set 1/2" Brass Female NPT 95,000 BTU/HR 0.5 psi / 0.003 bar
TGC-38PFB Plug 3/8" Brass Female NPT 50,000 BTU/HR 0.5 psi / 0.003 bar
TGC-38SFB Socket 3/8" Brass Female NPT 50,000 BTU/HR 0.5 psi / 0.003 bar
TGC-50PFB Plug 1/2" Brass Female NPT 95,000 BTU/HR 0.5 psi / 0.003 bar
TGC-50SFB Socket 1/2" Brass Female NPT 95,000 BTU/HR 0.5 psi / 0.003 bar

*The flow capacity and max operating pressure values are for when the halves are connected

ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
