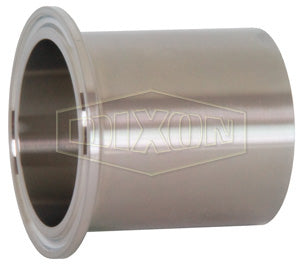

TL14AM7-600PL Dixon Valve 6" Tube OD 316L Stainless Steel BioPharm Automatic Weld Ferrule BPE2012 (PL Finish SF1)

TL14AM7-600PL Dixon Valve 6" Tube OD 316L Stainless Steel BioPharm Automatic Weld Ferrule BPE2012 (PL Finish SF1)

Save $183.17 Save $183.17
$457.93
$457.93 - $457.93
$457.93
$274.76
$274.76 - $274.76
$274.76

Dixon Sanitary Fittings Sanitary Tube Fitting - High Purity BioPharm Fitting - Automatic Weld Ferrule - TL14AM7

High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets.
Specifications for Variant SKU: TL14AM7-600PL Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PL Finish - SF1 (OD=32R a- ID=20R a)
  • PM Finish - SF4 (OD=32R a- ID=15R a)
Notes:
  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.
PL Finish - SF1
Part Number		 PM Finish - SF4
Part Number		 Size Dimensions
A B C OD ID
TL14AM7-050PL TL14AM7-050PM 1/2" 0.984" 1.750" 0.800" 0.500" 0.370"
TL14AM7-075PL TL14AM7-075PM 3/4" 0.984" 1.750" 0.800" 0.750" 0.620"
TL14AM7-100PL TL14AM7-100PM 1" 1.984" 1.750" 1.718" 1.000" 0.870"
TL14AM7-150PL TL14AM7-150PM 1-1/2" 1.984" 1.750" 1.718" 1.500" 1.370"
TL14AM7-200PL TL14AM7-200PM 2" 2.516" 2.250" 2.218" 2.000" 1.870"
TL14AM7-250PL TL14AM7-250PM 2-1/2" 3.047" 2.250" 2.781" 2.500" 2.370"
TL14AM7-300PL TL14AM7-300PM 3" 3.579" 2.250" 2.281" 3.000" 2.870"
TL14AM7-400PL TL14AM7-400PM 4" 4.682" 2.250" 4.344" 4.000" 3.834"
TL14AM7-600PL TL14AM7-600PM 6" 6.570" 3.000" 6.176" 6.000" 5.782"
