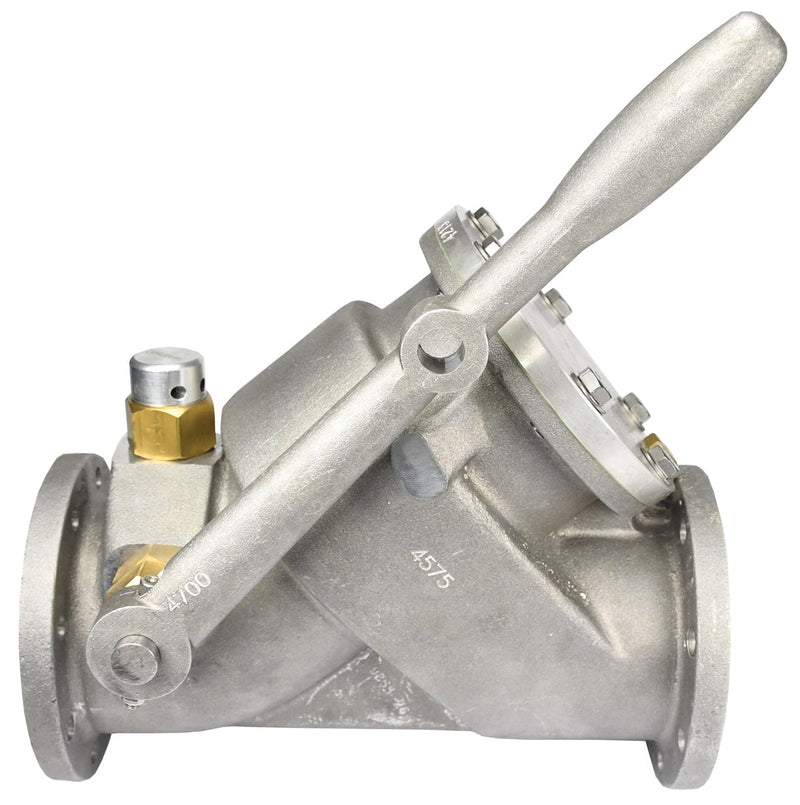

TLV-400TFVBVIAL by Dixon Valve | Top Loading Valve | with Vacuum Breaker | 4" Size | Aluminum

TLV-400TFVBVIAL by Dixon Valve | Top Loading Valve | with Vacuum Breaker | 4" Size | Aluminum

Save $1,739.26 Save $1,739.26
$4,348.15
$4,348.15 - $4,348.15
$4,348.15
$2,608.89
$2,608.89 - $2,608.89
$2,608.89

Dixon Valve
Top Loading Valve

For use in top loading fuels and other low-viscosity media.

Used to connect the pivot arm bar of ESB1 Counterbalance Units to the base swivel of a loading arm.
Specifications for Variant SKU: TLV-400TFVBVIAL Dixon
Material(s): Aluminum
Features:
  • BSP threaded vacuum breaker standard.
  • TTMA flanges on both ends standard.
  • Manually operated "deadman" style with spring-loaded handle.
  • Optional remote handle available.
  • Manual or remote controlled valve mounts before the loading arm leg to allow for flow control.
Materials:
  • Valve: aluminum
  • Vacuum breaker body: brass
  • Vacuum breaker housing: aluminum
  • Seals: FKM
Part Size Description
TLV-300TFVBVIAL 3" Top Loading Valve with Vacuum Breaker
TLV-400TFVBVIAL 4" Top Loading Valve with Vacuum Breaker
AT1350-3 3" Valve Remote, Handle, and Bracket Kit
AT1350-4 4" Valve Remote, Handle, and Bracket Kit
VB-050-BSP 1/2" Vacuum Breaker, BSP Threads
VB-050-NPT 1/2" Vacuum Breaker, NPT Threads
