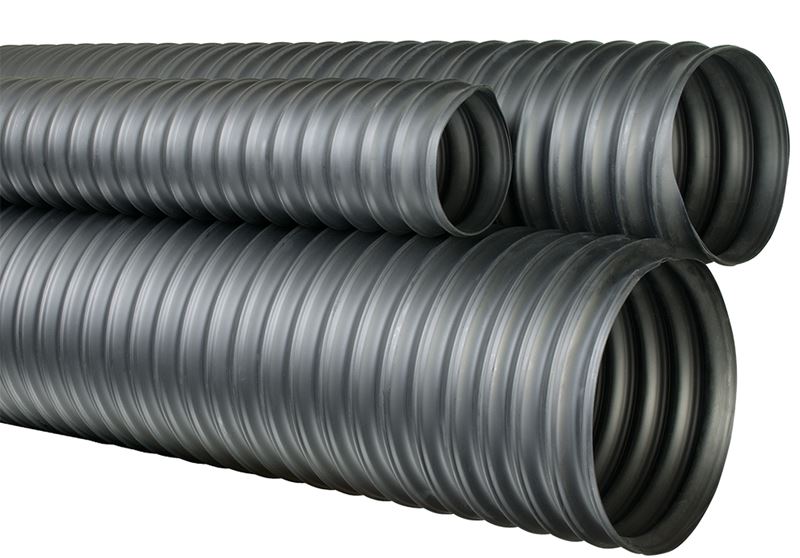

TMOD500X25 FLEXAIR™ by Kuriyama | Thermo-Duct™ | TMOD™ Series | Thermoplastic Rubber Ducting / Material Handling Hose | 5" ID | 25ft Length

TMOD500X25 FLEXAIR™ by Kuriyama | Thermo-Duct™ | TMOD™ Series | Thermoplastic Rubber Ducting / Material Handling Hose | 5" ID | 25ft Length

Save $212.47 Save $212.47
$384.22
$384.22 - $384.22
$384.22
$171.75
$171.75 - $171.75
$171.75

FLEXAIR™ by Kuriyama
Thermo-Duct™ | TMOD™ Serie | Thermoplastic Rubber Ducting/Material Handling Hose

Ideal for managing air movement in demanding environments, including chemical vapor exhaust, ventilation, dust control, and high-temperature air handling applications.

Made in the USA.

Package Quantity: 25 Foot

Specifications for Variant SKU: TMOD500X25 Kuriyama | 25 |
Brand: FLEXAIR
Series: Thermo-Duct, TMOD Series
Hose Color(s): Black
Internal Diameter: 5in
Tubing Construction: Thermoplastic Rubber
Applicable Specs & Approvals: RoHS Compliant
General Applications:
  • Chemical vapor exhausting**
  • Ducting, ventilation and fume removal
  • Dust control
  • High temperature air handling
Construction:
  • Thermoplastic rubber (TPR) hose with steel wire helix.
Specifications:
  • RoHS
Service Temperature Range:
  • -60°F (-51°C) to +275°F (+135°C)
    Intermittent service to +300°F (+149°C)*
    *Actual service temperature range is application dependent
Features and Advantages:
  • Thermoplastic Rubber (TPR) Material - Combines the chemical resistant properties of PVC with the flexibility of rubber to handle a wide variety of ducting or light material handling applications, especially ones when high cycle strength is required.
  • Chemical Resistant - Excellent resistance to a wide variety of industrial chemicals.**
  • Steel Wire Helix - Highly durable steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Wire can be grounded for static dissipation.
  • "Cold-Flex" Material - Hose remains flexible in sub-zero temperatures.
Notes:
  • Service life may vary depending on operating conditions and type of material being conveyed.
  • CAUTION: This product is designed to dissipate static electricity when the metal wire is physically extracted and securely connected to ground, through the fitting or by other means.
  • **CAUTION: Before using any hose, the user is responsible for determining it's suitability for the intended application. Therefore, the user assumes all risk and responsibility for determining the suitability of any hose for handling any chemical or chemicals.
Part Number
25ft Length		 ID Min. Bend
Radius
at 68°F		 Max Working
Pressure
(PSI)		 Vacuum
Rating
Weight
in mm in at
68°F		 at
68°F		 (lbs/ft)
TMOD200X25 2" 50.8mm 1" 60 PSI 27 in Hg 0.22 lbs/ft
TMOD250X25 2-1/2" 63.5mm 1.5" 60 PSI 27 in Hg 0.29 lbs/ft
TMOD300X25 3" 76.2mm 1.5" 40 PSI 27 in Hg 0.30 lbs/ft
TMOD400X25 4" 101.6mm 1.5" 40 PSI 27 in Hg 0.47 lbs/ft
TMOD500X25 5" 127.0mm 2.4" 40 PSI 24 in Hg 0.61 lbs/ft
TMOD600X25 6" 152.4mm 2.8" 40 PSI 11 in Hg 0.71 lbs/ft
TMOD800X25 8" 203.2mm 4.2" 40 PSI 16 in Hg 1.62 lbs/ft
TMOD1000X25 10" 254.0mm 5.7" 32 PSI 16 in Hg 1.86 lbs/ft
TMOD1200X25 12" 304.8mm 5" 25 PSI 14 in Hg 2.05 lbs/ft
TMOD1400X25 14" 355.6mm 5" 24 PSI 9 in Hg 2.20 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
