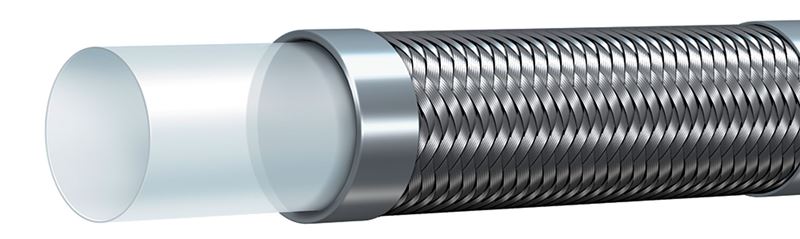

TR14TB-06 Alfagomma by Kuriyama | TR14TB Series | SAE 100R14 | True Bore High Temp Smooth PTFE Stainless Steel Braided Hose | 3/8" ID | 0.50" OD | 2600 PSI

TR14TB-06 Alfagomma by Kuriyama | TR14TB Series | SAE 100R14 | True Bore High Temp Smooth PTFE Stainless Steel Braided Hose | 3/8" ID | 0.50" OD | 2600 PSI

Save $2.22 Save $2.22
$7.77
$7.77 - $7.77
$7.77
$5.55
$5.55 - $5.55
$5.55

Kuriyama of America Inc.
Alfagomma | TR14TB Series | SAE 100R14 | True Bore High Temp Smooth PTFE Stainless Steel Braided Hose

Suitable for air, gas, steam, fuel, oil, chemicals, pharmaceuticals, cryogenic lines, compressor discharge, automotive, marine, and food industry applications.

Ideal for solvents, pigments, paint, and hydraulic lines; not for molten alkali metals or high-temp halogens.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TR14TB-06 Kuriyama
Brand: Alfagomma
Series: TR14TB Series
Internal Diameter: 0.375in
Outer Diameter: 0.50in
Tubing Construction: PTFE
Cover Construction: 304 Stainless Steel
Applicable Specs & Approvals: SAE 100R14, FDA US Pharmacopeia Class VI
Application: Compressed air, gas, steam, fuel, oil, chemical and pharmaceutical products, particularly suitable for steam piping on injection moulding machines, diathermic oil installations, charging lines for cryogenic gas, compressor discharge lines, automotive, pharmaceutical and food sectors. Solvents, pigments and paint transfer lines. Hydraulic lines in power steering marine applications. Not suitable for molten alkali metals and halogens at high temperature. SAE Rating: SAE 100R14
Other Ratings: AISI 304
FDA US Pharmacopeia - Class VI		 Tube: Smooth PTFE - high mechanical and vibration resistance, low permeability, dielectrical, fire resistant, food grade (FDA, DVGW, BFR compliant). Chemically inert, non sticking, ozone and weather resistant.
Reinforcement: High tensile stainless steel braid AISI 304. Cover: High Tensile Stainless Steel Braid.
Service Temperature Range: -76°F (-60°C) to +500°F (+260°C) constant operation Air Maximum Temperature: -
Branding: N/A
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TR14TB-03 3/16" 4.8mm 0.31" 7.8mm 4000 PSI 2.0" 50.8mm 0.06 lbs/ft
TR14TB-04 1/4" 6.4mm 0.34" 8.6mm 3500 PSI 3.0" 76.2mm 0.06 lbs/ft
TR14TB-05 5/16" 7.9mm 0.46" 11.6mm 3000 PSI 4.0" 101.6mm 0.09 lbs/ft
TR14TB-06 3/8" 9.5mm 0.50" 12.7mm 2600 PSI 5.0" 127.0mm 0.10 lbs/ft
TR14TB-08 1/2" 12.7mm 0.61" 15.4mm 2300 PSI 5.5" 139.7mm 0.13 lbs/ft
TR14TB-10 5/8" 15.9mm 0.72" 18.4mm 2000 PSI 6.5" 165.1mm 0.18 lbs/ft
TR14TB-12 3/4" 19.1mm 0.87" 22.1mm 1600 PSI 8.0" 203.2mm 0.22 lbs/ft
TR14TB-16 1" 25.4mm 1.17" 29.8mm 1000 PSI 12.0" 304.8mm 0.35 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
