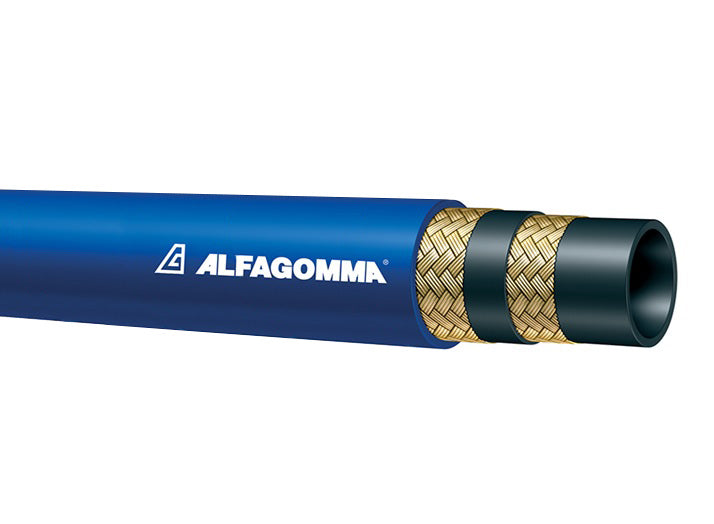

TR2HT-10 Alfagomma by Kuriyama | TR2HT Evolution Series | SAE J517 100R2 | High Temp Hydraulic Hose (Up to +300°F) | 2-Wire Braid | 5/8" ID | 0.96" OD | 3630 PSI

TR2HT-10 Alfagomma by Kuriyama | TR2HT Evolution Series | SAE J517 100R2 | High Temp Hydraulic Hose (Up to +300°F) | 2-Wire Braid | 5/8" ID | 0.96" OD | 3630 PSI

Save $4.62 Save $4.62
$16.16
$16.16 - $16.16
$16.16
$11.54
$11.54 - $11.54
$11.54

Kuriyama of America Inc.
Alfagomma | TR2HT Evolution | SAE J517 100R2 | High Temp Hydraulic Hose (Up to +300°F) | 2-Wire Braid

HIGH TEMP is ALFAGOMMA's most advanced hydraulic hose for extreme heat.

Wherever low or continuous high temperatures or fluid compatibility is a problem, this high quality, high performance hose solves the problem. Also ideal for use where greatly extended service life under "normal" conditions is desired.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: TR2HT-10 Kuriyama
Brand: Alfagomma, Evolution
Series: TR2HT Series
Hose Color(s): Blue
Dash Size: -10
Internal Diameter: 0.625in
Outer Diameter: 0.96in
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE J517, SAE 100R2-AT, EN 853 2SN
Special Properties: High Temperature
Compatible with the following Series: B Series  |   D Series  |   AF2 Series
Application: Wherever low or continuous high temperatures or fluid compatibility is a problem, this high quality, high performance hose solves the problem. Also ideal for use where greatly extended service life under "normal" conditions is desired. SAE Rating: Meets or exceeds the requirement of SAE J517 100R2Type AT - EN 853 2SN
Other Ratings: Meets or exceeds SAE 100 R2AT - EN 853 2SN Tube: Black tube, specifically compounded for temperature and chemical resistance, oil resistant.
Reinforcement: Two high tensile steel wire braids. Cover: Synthetic rubber, blue... weather, oil, fuel, ozone and abrasion-resistant. Smooth up to 5/8" and wrapped over 5/8".
Service Temperature Range: -40°F (-40°C) to +300°F (+150°C) constant operation.
Maximum Operating Temperature: +300°F (+150°C)		 Air Maximum Temperature: Through 5/8" ID: +185°F (+85°C)
Above 5/8" ID: +230°F (+110°C)
Note: Operating temperatures in excess of +300°F (+150°C) may materially reduce the life of the hose.
Branding: Alfagomma 2SN Evolution HT ... WP ... MPa (...PSI) - EN 853 2SN ... Q/YR
Other Features:
  • Superior fluid resistance - handles petroleum, fire-resistant fluids, lubricants, and fuels.
  • Longer service life - lasts up to 500% longer under extreme heat and pressure.
  • Resists chemical degradation - no hardening or brittleness over time.
  • Reduced downtime - improves equipment uptime and lowers maintenance costs.
  • Extended shelf life - resists ozone and oxidizers; no aging-related property loss.
  • Lower inventory needs - one hose covers a wide range of fluids.
  • Easy to use - compatible with standard crimped fittings.
  • Survives 1,000,000 impulse cycles at +300°F (150°C).
  • Maintains flexibility and elasticity - no tube cracking or hardening.
  • Outperforms standard SAE 100R2A / EN 853 2ST hoses under identical conditions.
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
TR2HT-04 1/4" 6mm 0.57" 14.5mm 5800 PSI 4.0" 100mm 0.22 lbs/ft
TR2HT-06 3/8" 9.5mm 0.72" 18.2mm 4800 PSI 4.9" 124.5mm 0.32 lbs/ft
TR2HT-08 1/2" 12.7mm 0.84" 21.3mm 4000 PSI 6.8" 172.7mm 0.36 lbs/ft
TR2HT-10 5/8" 15.9mm 0.96" 24.5mm 3630 PSI 7.8" 198.1mm 0.45 lbs/ft
TR2HT-12 3/4" 19.1mm 1.13" 28.6mm 3120 PSI 9.4" 238.8mm 0.58 lbs/ft
TR2HT-16 1" 25.4mm 1.44" 36.6mm 2400 PSI 11.8" 299.7mm 0.83 lbs/ft
TR2HT-20 1-1/4" 31.8mm 1.81" 46.0mm 1820 PSI 16.5" 419.1mm 1.91 lbs/ft
TR2HT-24 1-1/2" 38.1mm 2.08" 52.8mm 1310 PSI 19.6" 497.8mm 1.37 lbs/ft
TR2HT-32 2" 50.8mm 2.58" 65.6mm 1200 PSI 24.8" 629.9mm 1.86 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.
