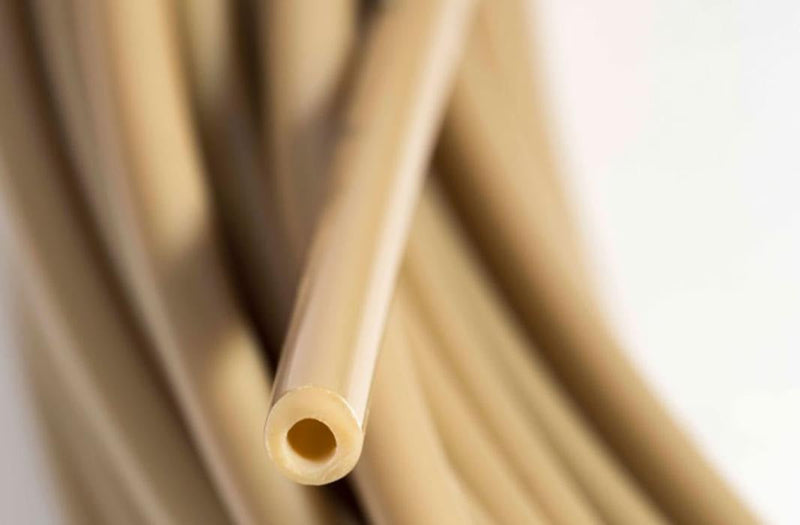

TSPK38-0125-023 Versilon™ by Saint Gobain | PEEK® Capillary Tubing | 0.080" ID x 0.125" OD x .023" Wall | 250' Package Length

TSPK38-0125-023 Versilon™ by Saint Gobain | PEEK® Capillary Tubing | 0.080" ID x 0.125" OD x .023" Wall | 250' Package Length

Save $513.33 Save $513.33
$2,566.66
$2,566.66 - $2,566.66
$2,566.66
$2,053.33
$2,053.33 - $2,053.33
$2,053.33

Saint Gobain
Versilon® PEEK | Capillary Tubing

Versilon® PEEK flexible, capillary tubing is designed specifically for the demands of high-pressure chromatography (HPLC).

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: TSPK38-0125-023 Saint Gobain | 250 |
Brand: Versilon
Series: PEEK
Hose Color(s): Beige
Internal Diameter: 0.08in
Outer Diameter: 0.125in
Tubing Construction: Polyetheretherketone
Applicable Specs & Approvals: Applicable FDA Requirements
Fluoropolymer Flexible Tubing

Versilon® PEEK | Capillary Tubing

Versilon® PEEK capillary tubing is designed specifically to meet the demands of high performance liquid chromatography (HPLC) applications. It is more corrosion resistant than stainless steel and has the structural integrity to withstand high pressures at elevated temperatures. Highly chemically resistant, Versilon® PEEK has extremely low extractables and is unaffected by continuous exposure to steam.

1

What is this product used for?
  • Liquid chromatography
  • Semiconductor
  • Laboratory
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Tan

Continuous Service Temperature °F

480°F

Minimum Recommended Operating Temp. °F (°C)

N/A

Specifications

Flame retardant (UL 94 V-O)

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Excellent chemical resistance.
  • Abrasion resistance.
  • High strength.
  • Dimensionally stable.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Max. Working
Pressure*
at 73°F (23°C)
PSI		 Max. Working
Pressure*
at 392°F (200°C)
PSI		 Length
TSPK38-0062-026 0.010" 0.062" 0.026" 3337 PSI 860 PSI 250ft
TSPK38-0062-021 0.020" 0.062" 0.021" 2853 PSI 735 PSI 250ft
TSPK38-0062-016 0.030" 0.062" 0.016" 2182 PSI 562 PSI 250ft
TSPK38-0062-011 0.040" 0.062" 0.011" 1449 PSI 373 PSI 250ft
TSPK38-0125-031 0.062" 0.125" 0.032" 2127 PSI 548 PSI 250ft
TSPK38-0125-023 0.080" 0.125" 0.023" 1427 PSI 379 PSI 250ft

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Versilon® PEEK Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
