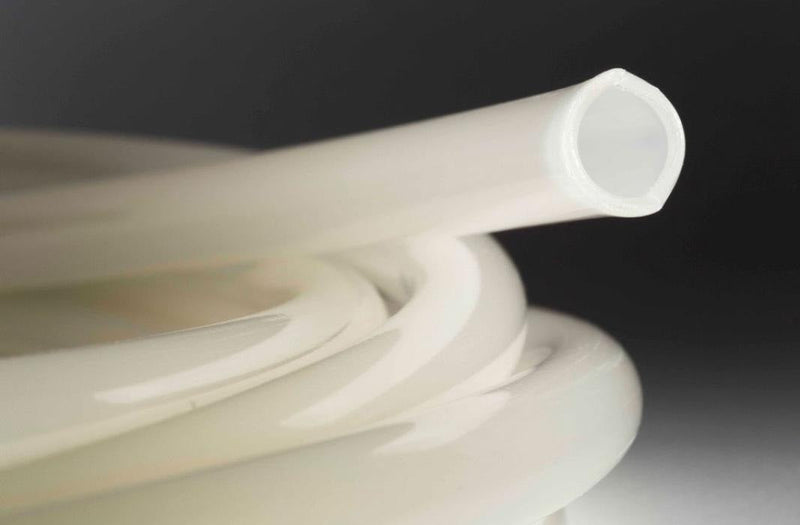

TSPVF8-0625-062.10 Versilon™ by Saint Gobain | PVDF | Flexible Fluoropolymer Chemical Transfer Tubing | 1/2" ID x 5/8" OD x .062" Wall | 100' Package Length

Minimum Order Quantity: 2 Packages

Save $210.00

$1,050.00

$1,050.00 - $1,050.00

$1,050.00

$840.00

$840.00 - $840.00

$840.00

Saint Gobain
Versilon® PVDF | Flexible Fluoropolymer Chemical Transfer Tubing

Versilon® PVDF copolymer tubing offers the chemical resistance of fluoropolymer tubing with added flexibility not found in standard PVDF.

Ideal for use in the semiconductor industry, pulp and paper industry, ink transfer/processing and nuclear waste processing.

No by the foot sales. This is a Packaged Length product.

Specifications for Variant SKU: TSPVF8-0625-062.10 Saint Gobain \| 100 \|
Brand:	Versilon
Series:	Versilon PVDF
Hose Color(s):	White/Off-White
Internal Diameter:	0.50in
Outer Diameter:	0.625in
Tubing Construction:	Polyvinylidene Fluoride
Applicable Specs & Approvals:	Applicable FDA Requirements, FDA 21 CFR Part 177.2600

Fluoropolymer Flexible Tubing

Versilon® PVDF | Flexible Fluoropolymer Chemical Transfer Tubing

Produced from Kynar® Flex resin, a co-polymer material, Versilon® PVDF chemical transfer tubing from Saint-Gobain offers the stable characteristics of fluoropolymer tubing. In addition, it has abrasion resistance, mechanical strength, and inherent high purity. This flexible tubing also offers chemical compatibility in higher pH solutions, increased impact strength and better clarity than standard PVDF. These features make it ideal for use in the semiconductor industry, pulp and paper industry, ink transfer/processing and nuclear waste processing.

1

What is this product used for?

Chemical processing
Food processing
Nuclear waste processing
Photovoltaic
Pulp and paper
Semiconductor
Water transfer and purification

2

What are the key specifications?

Tube

Kynar® Flex resin, a co-polymer material

Cover

N/A

Reinforcement

None

Colors

Clear

Opacity

Opaque

Maximum Recommended Operating Temp. °F (°C)

250°F (121°C)

Specifications

Material compliant with 21 CFR Sec. 177.2600 (c)(4)(i)

WARNING:

Not intended as an implant material!

3

What are the main product features?

High purity/low extractables.
Abrasion resistance.
Excellent chemical resistance.
UV and radiation resistance.
Mechanical strength and toughness.
Low permeability.

4

Which sizes or configurations are available?

Part Number 50ft Lengths	Part Number 100ft Lengths	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)
TSPVF8-0125-031-50	TSPVF8-0125-031.10	1/16"	1/8"	0.031" (1/32")
TSPVF8-0187-031-50	TSPVF8-0187-031.10	1/8"	3/16"	0.031" (1/32")
TSPVF8-0250-040-50	TSPVF8-0250-040.10	8/47" (.170")	1/4"	0.040" (1/25")
TSPVF8-0250-062-50	TSPVF8-0250-062.10	1/8"	1/4"	0.062" (1/16")
TSPVF8-0312-062-50	TSPVF8-0312-062.10	3/16"	5/16"	0.062" (1/16")
TSPVF8-0375-031-50	TSPVF8-0375-031.10	5/16"	3/8"	0.031" (1/32")
TSPVF8-0375-062-50	TSPVF8-0375-062.10	1/4"	3/8"	0.062" (1/16")
TSPVF8-0437-062-50	TSPVF8-0437-062.10	5/16"	7/16"	0.062" (1/16")
TSPVF8-0500-062-50	TSPVF8-0500-062.10	3/8"	1/2"	0.062" (1/16")
TSPVF8-0625-062-50	TSPVF8-0625-062.10	1/2"	5/8"	0.062" (1/16")
TSPVF8-0750-062-50	TSPVF8-0750-062.10	5/8"	3/4"	0.062" (1/16")
TSPVF8-0875-062-50	TSPVF8-0875-062.10	3/4"	7/8"	0.062" (1/16")

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain Versilon® PTFE-F Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.

Shop Parts by Saint Gobain
