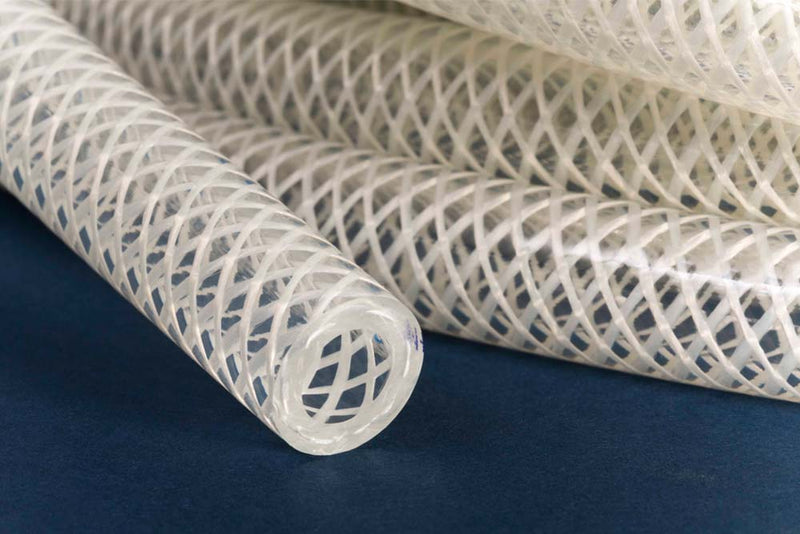

Tygon® APC1S2138 Saint Gobain 10mm ID x 16mm OD x 3mm Wall 15M Package Length - 2375-IB Ultra Chemical Resistant Pressure Tubing

APC1S2138 Tygon® by Saint Gobain | 10mm ID x 16mm OD x 3mm Wall | 2375-IB Ultra Chemical Resistant Pressure Tubing | 15m Package Length

Minimum Order Quantity: 80 Packages

Save $24.02 Save $24.02
$240.18
$240.18 - $240.18
$240.18
$216.16
$216.16 - $216.16
$216.16

Saint Gobain
Tygon® 2375 IB High Pressure, Chemical Transfer Tubing

Tygon 2375 IB tubing, which is virtually unaffected by chemical sanitizers and cleaners, is specially engineered to deliver an outstanding performance in an environment where harsh chemicals are used. Because of its robust, polyester braid reinforcement construction, Tygon 2375 IB holds a full vacuum rating, ideal for suction/delivery side of any chemical transfer. It is also hydrophobic and resists the sorption (absorption/ adsorption) of aqueous fluids. This reduction in sorption minimizes the risk of fluid alteration in single or repeat-use applications.

Flexibility Without the Use of Plasticizers
Until now, clear, flexible tubing was restricted from use in many applications due to concerns over plasticizer extraction. Tygon 2375 IB high-purity tubing is entirely free of any plasticizers. This unique tubing uses the latest in polymer technology to provide a clear (between braid) and flexible tubing choice for sensitive fluid transfer applications.

No by the foot sales. This is a Packaged Length product.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: APC1S2138 Saint Gobain
Brand: Tygon
Series: 2375-IB
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 10mm
Outer Diameter: 16mm
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: REACH Compliant, RoHS Compliant

SPECIFICATIONS

Application: Detergent transfer for laundry, Dishwashing cleaning chemical transfer lines, Warewashing cleaning chemical transfer lines, Car washing equipment chemical transfer lines,Harsh chemical transfer, Solvent transfers SAE Rating: N/A
Other Ratings: N/A Tube: Tygon® 2375 IB
Reinforcement: Polyester Braid Cover: N/A
Temperature Range: Continuous Service Temp: 480°F Crimp Fittings: N/A
Reusable Fittings: N/A Specifications REACH, RoHS
Literature: Tygon® 2375-IB Ultra Chemical Resistant Pressure Tubing (PDF)
Other Features:
  • Outstanding chemical resistance.
  • Non-DEHP for high purity.
  • Plasticizer-free for low extractables.
  • Tough braid reinforcement for elevated working pressures.
  • Safer disposal - Releases no harmful and corrosive hydrogen chloride gas.
  • Smoother inner surface - Provides better flow and inhibits particulate buildup.
  • Clear tubing for easier and better observation.
  • WARNING: Tygon® 2375-IB Ultra Chemical Resistant Pressure Tubing is not intended as an implant material.
Part Number Inside
Diameter		 Outside
Diameter		 Wall
Thickness		 Min.
Bend Radius		 Max. Working Pressure
at 73 deg. F		 Vaccum Pressure Rating
at 73 deg. F		 Length
mm in mm in mm in mm in bar PSI mmHg inHg m ft
APC1S1542 6mm 0.236" 12mm 0.472" 3mm 0.118" 25.4mm 1" 15.5 bar 225 PSI 760 mmHg 29.9 inHG 15M 49.2ft
APC1S2138 10mm 0.394" 16mm 0.630" 3mm 0.118" 50.8mm 2" 11.7 bar 170 PSI 760 mmHg 29.9 inHG 15M 49.2ft
APC1S2480 12mm 0.472" 18mm 0.709" 3mm 0.118" 95.25mm 3.75" 13.1 bar 190 PSI 760 mmHg 29.9 inHG 15M 49.2ft
APC1S2481 16mm 0.630" 22mm 0.866" 3mm 0.118" 101.6mm 4" 11.3 bar 165 PSI 760 mmHg 29.9 inHG 15M 49.2ft

* Working pressures are calculated at a 1:4 ratio relative to burst pressure using ASTM D1599.

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
