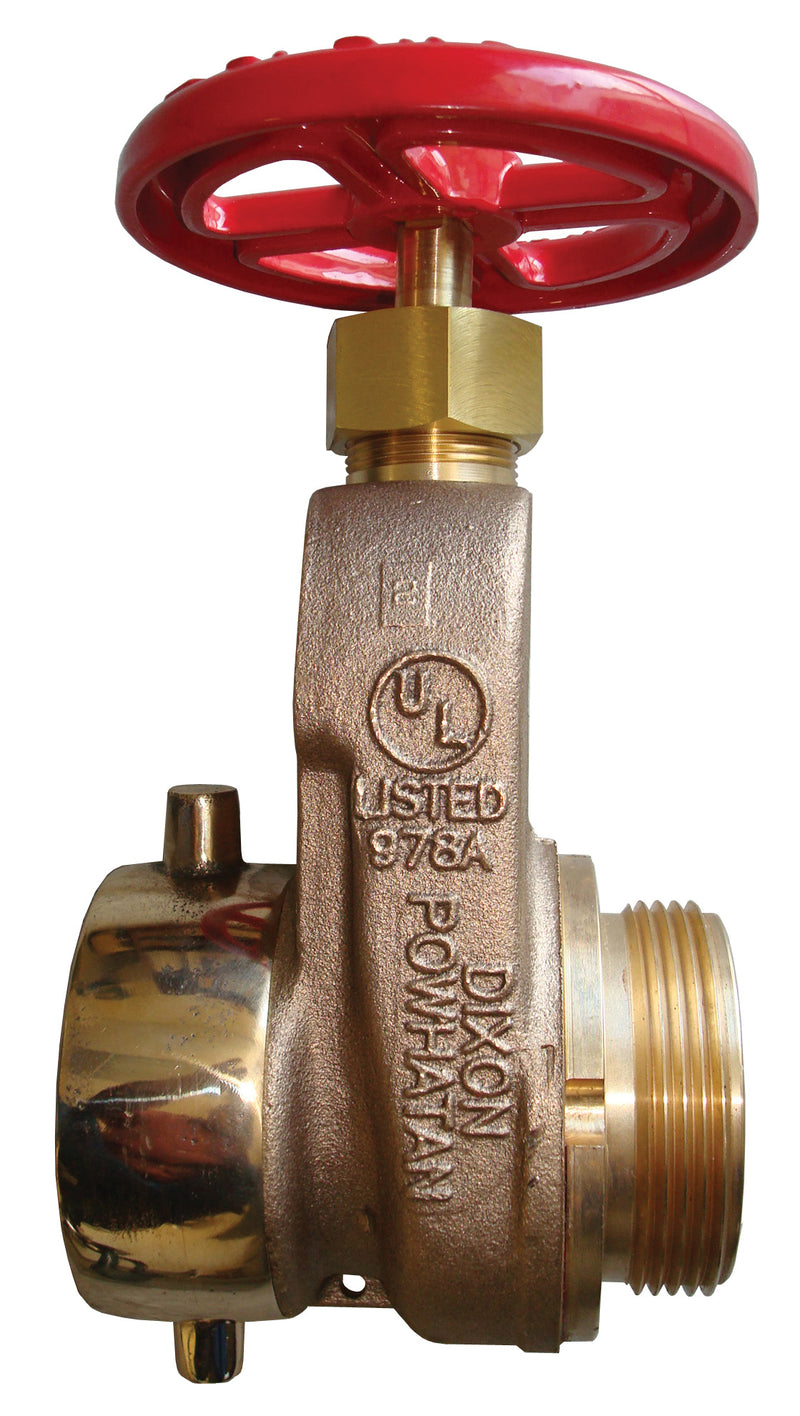

UHGV250F-D Dixon Cast Red Brass Single Hydrant Gate Valve with Handwheel - 2-1/2" Female NST(NH) Inlet x 2-1/2" Male NST(NH) Outlet (Domestic)

UHGV250F-D Dixon Cast Red Brass Single Hydrant Gate Valve with Handwheel - 2-1/2" Female NST(NH) Inlet x 2-1/2" Male NST(NH) Outlet (Domestic)

Save $329.63 Save $329.63
$824.08
$824.08 - $824.08
$824.08
$494.45
$494.45 - $494.45
$494.45

Dixon Fire Fittings
Single Hydrant Gate Valve with Handwheel - Cast Red Brass

Used to throttle the flow from a fire hydrant preventing damage to the hydrant.
Specifications for Variant SKU: UHGV250F-D Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NST, 2-1/2in Male NST
Material(s): Brass
Features:
  • For use on standpipes and fire pumps where UL listing is required.
  • For use with water only.
  • UL listed.
  • O-ring seal.
  • Maximum operating pressure: 175 PSI (water only) at 70°F (21°C).
Part Number Description Weight
(Lbs.)
UHGV250F 2-1/2" Female NST (NH) inlet x 2-1/2" Male NST (NH) outlet 9.0000
UHGV250F-D 2-1/2" Female NST (NH) inlet x 2-1/2" Male NST (NH) outlet (Domestic) 9.0000
Replacement Parts
UHGV250-W Replacement handwheel for UHGV250F 0.4460
