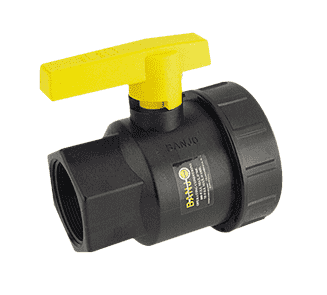

UV050FP Banjo Polypropylene Spinweld Single Union Ball Valve - 1/2" Female NPT x 1/2" Female NPT - 3/4" Opening Thru Ball - 100 PSI

UV050FP by Banjo | Spinweld Single Union Ball Valve | 1/2" Female NPT x 1/2" Female NPT | 3/4" Opening Thru Ball | 300 PSI | Polypropylene | Pack of 10

Save $16.85 Save $16.85
$151.65
$151.65 - $151.65
$151.65
$134.80
$134.80 - $134.80
$134.80

Banjo Valves
Single Union Ball Valves - Spinweld Valves - Polypropylene

Package Quantity: 10 EA

Specifications for Variant SKU: UV050FP Banjo | 10 |
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): EPDM
Applications:
  • Fluids
Features:
  • Precision molded in glass reinforced polypropylene, for strength and chemical resistance
  • PTFE seats for smooth operation and proper sealing characteristics
  • Double O-rings in stem area for extra sealing protection
  • Interlocking body and end plate to allow easy thread connection when installing
Part Number End Type Opening
Thru Ball		 Stem O-Ring Max PSI
UV050FP 1/2" Female NPT x 1/2" Female NPT 3/4" EPDM 300 PSI
UV075FP 3/4" Female NPT x 3/4" Female NPT 3/4" EPDM 300 PSI
UV100FP 1" Female NPT x 1" Female NPT 1" EPDM 300 PSI
UV125FP 1-1/4" Female NPT x 1-1/4" Female NPT 1-1/2" EPDM 225 PSI
UV150FP 1-1/2" Female NPT x 1-1/2" Female NPT 1-1/2" EPDM 200 PSI
UV200FP 2" Female NPT x 2" Female NPT 2" EPDM 300 PSI
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
