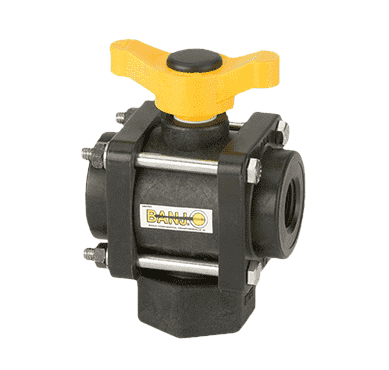

V075BL Banjo Polypropylene 3-Way Ball Valve - Bottom Load - 3/4" Female NPT - Opening Thru Ball: 1" - 100 PSI - T Handle

V075BL by Banjo | 3-Way Ball Valve | Bottom Load | 3/4" Female NPT | Opening Thru Ball: 1" | 200 PSI | T Handle | Polypropylene | Pack of 6

Save $34.08 Save $34.08
$280.24
$280.24 - $280.24
$280.24
$246.16
$246.16 - $246.16
$246.16

Banjo Valves
Bolted Ball Valves - 3-Way Ball Valves - Bottom Load - Polypropylene - 4 Bolt Valves

Package Quantity: 6 Units

Specifications for Variant SKU: V075BL Banjo | 6 |
Shape (Orientation): Tee
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • BOTTOM LOAD: Directional flow, right or left. Valve can be turned off to stop flow.
  • Stainless steel bolts
  • Precision molded in polypropylene. Polypro py lene is reinforced with fiber glass for additional strength
  • Self-aligning ball moves freely against the PTFE seats for smooth operation
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats
  • PTFE self-lubricating stem bushings and seats
  • FKM (viton type) body seals
Part Number Female NPT x Female NPT x Female NPT Opening Thru Ball Max PSI Handle Type
V075BL 3/4" x 3/4" x 3/4" 1" 200 PSI T
V100BL 1" x 1" x 1" 1" 225 PSI T
V125BL 1-1/4" x 1-1/4" x 1-1/4" 1-1/2" 300 PSI T
V150BL 1-1/2" x 1-1/2" x 1-1/2" 1-1/2" 225 PSI T
V200BL 2" x 2" x 2" 2" 200 PSI Straight
Replacement Parts for V075BL, V100BL
Item Part Number Description Quantity Required
1 V10354B 1" Valve Body 1
2 V10257 1" End Plate 2
3 V10151A Stem 1
5 V10355B Ball 1
6 V10258 Seats 2
7 V10060 Thrust Bushing 1
8 V10159 Upper Stem Bushing 1
9 V10163 FKM (viton type) Stem O-Ring 1
10 V10264 FKM (viton type) Body O-Ring 2

NOTE: Handle style will vary from picture.
