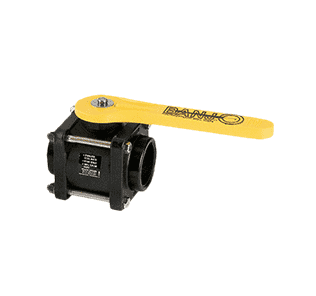

V204FP Banjo Polypropylene 2" Full Port Bolted Ball Valve - 2" Female NPT x 2" Female NPT - Opening Thru Ball: 2" - 150 PSI

V204FP by Banjo | Full Port Bolted Ball Valve | 2" Female NPT x 2" Female NPT | Opening Thru Ball: 2" | 150 PSI | Polypropylene | Pack of 8

Save $273.57 Save $273.57
$683.92
$683.92 - $683.92
$683.92
$410.35
$410.35 - $410.35
$410.35



Banjo Valves - Bolted Ball Valves - 2" Full Port Bolted Ball Valves - Polypropylene - 4 Bolt Valves

Package Quantity: 8 EA

Specifications for Variant SKU: V204FP Banjo | 8 |
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • FKM (viton type) seals
  • PTFE self-lubricating stem bushings and seats cannot stick or bind.
  • Precision molded in polypropylene
  • Polypropylene is reinforced with fiberglass for additional strength.
  • Self-aligning ball moves freely against the PTFE seats for smooth operation.
  • Valve opens and closes with very little pressure on the handle.
  • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
  • Stainless steel bolts
Other Components:
  • 2" Full Port Bolted Ball Valve Replacement Parts

Part Number Port Type End Type Opening Thru Ball Max PSI Package Quantity
VFMT204FP Full Port Valve 2" Male NPT x 2" Male Adapter 2" 150 PSI 1
V204FP Full Port Valve 2" Female NPT x 2" Female NPT 2" 150 PSI 1

Replacement Parts for V204FP
Item Part Number Description Quantity Required
1 V25254 2" FP Valve Body 1
2 V25160 Upper Stem Bushing 1
3 V25264 FKM (viton type) Body O-Ring 2
4 V25258A 2" FP Ball Seat 2
5 V20019 3/8" 16 SS Hex Nut 4
7 V25017 3/8" x 4-1/2" SS Body Bolt 4
8 V25060 Thrust Bushing 1
9 V20018 3/8" SS Lock Washer 4
10 V25255A 2" Ball 1
11 V25456 2" Full Port End Plate 2
12 V25163 FKM (viton type) Stem O-Ring 1
13 V25151B Stem 1
15 V25153 Handle 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
