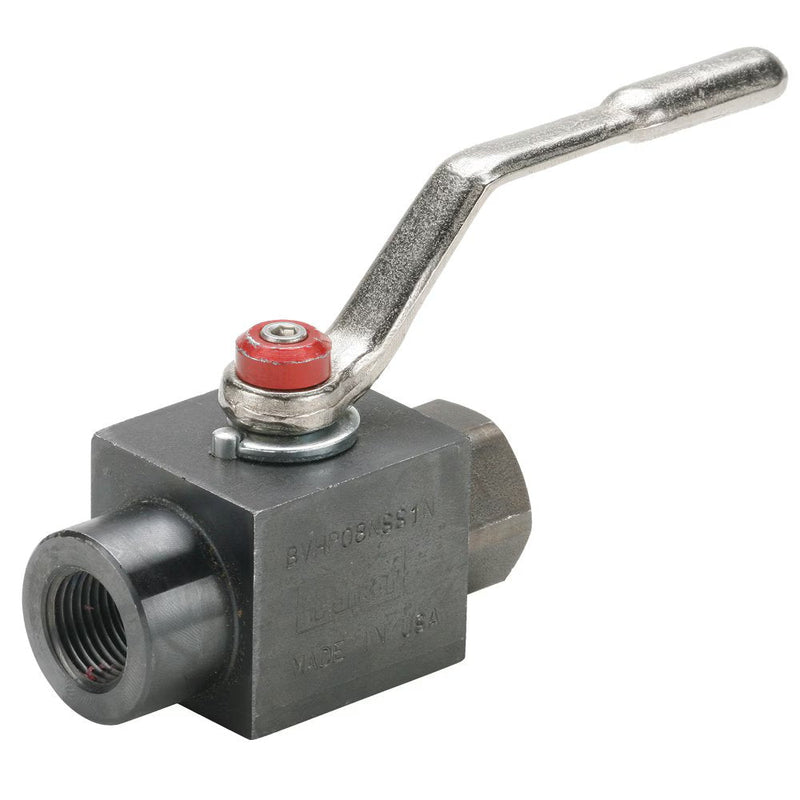

V500HP-12 by Parker | Ball Valve | 3/4" Female NPT Thread | 8.61" Length | Straight | Carbon Steel

Save $27.12

$173.23

$173.23 - $173.23

$173.23

$146.11

$146.11 - $146.11

$146.11

by Parker Hannifin
Ball Valves Carbon Steel Series 500HP, 506HP:6000 PSI Female-Female Pipe Ends V500HP

Specifications for Variant SKU: V500HP-12 Parker
Series:	V500HP Series
Shape (Orientation):	Straight
Material(s):	Carbon Steel, Delrin, Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Coated, Valved

Specification:
Product Features:	Carbon Steel Phosphate Coated body Steel ball Delrin with Molybdenum Disulphide Seats Nitrile O-rings Stem Seals Steel handle
Style:	V-Valve VP-Valve, padlocking handle
Type:	500-Female/Female NPT Ports 506-Female/Female SAE Straight Thread Ports
Material:	HP-High Pressure Carbon Steel
Temperature Range:	-10° to +210° F (-23.3° to 98.8° C)
Pressure Range:	6000 PSI (413.6 bar)* (Dependent on size) 7250 PSI (9.9 bar) (*Dependent on size)


Part Number	Pipe Thread (NPT)	B	C	H	L	M	N	Flow Diameter (D)
V500HP-12	3/4"-14	.66"	2.24"	6.73"	2.44"	3.75"	4.94"	.790"
V500HP-20	1-1/4"-11.5	.79"	3.38"	12.05"	3.15"	4.72"	6.99"	1.26"
V500HP-24	1-1/2"-11.5	.89"	4.06"	12.05"	3.35"	5.12"	7.66"	1.50"
V500HP-32	2"-11.5	.78"	4.79"	12.05"	3.94"	5.50"	8.21"	1.89"
